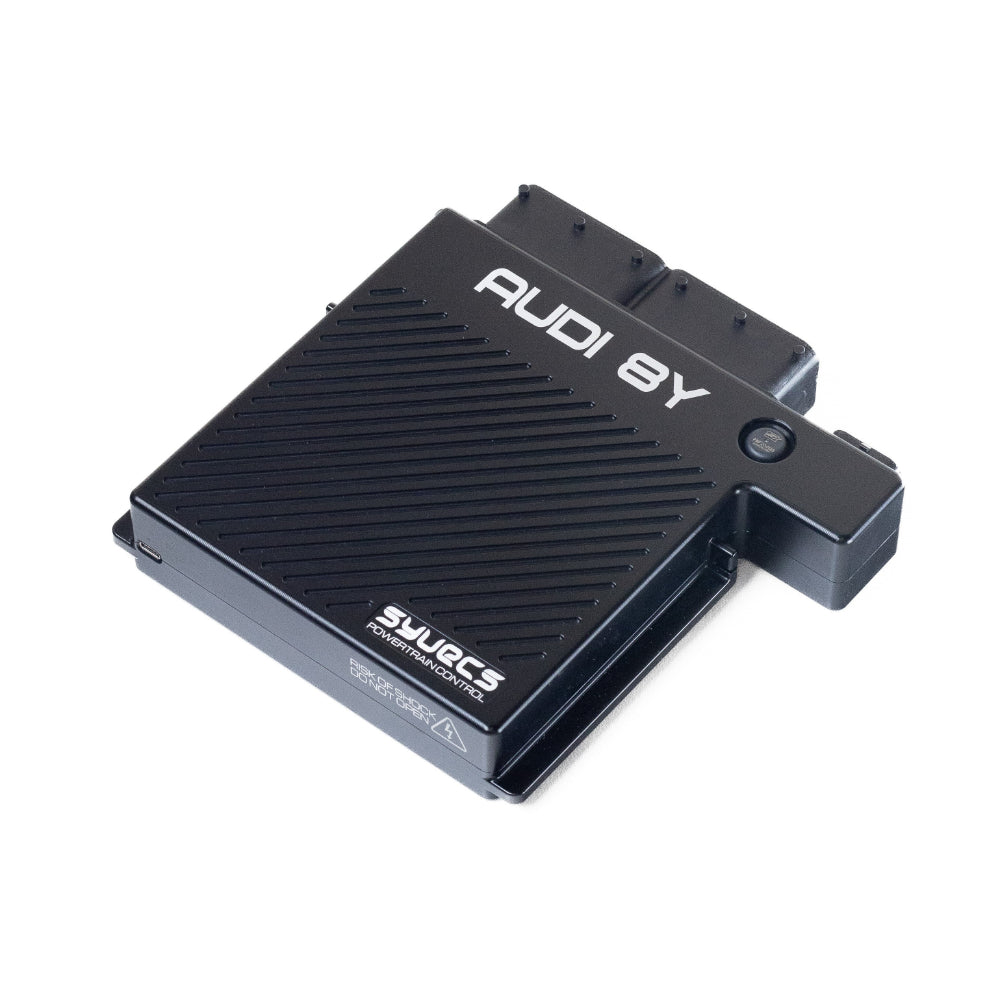

Syvecs S7D Plug And Play ECU Kit Audi RS3 8Y1

The Syvecs Plug-and-Play ECU Kit for the Audi RS3 8Y1 (Pre-Facelift) is a fully integrated engine management solution developed for early MQB Evo–based RS3 platforms equipped with the factory 2.5 TFSI engine.

This kit interfaces directly with the vehicle’s electrical architecture via a true plug-and-play connection, allowing installation without any cutting, splicing, or permanent vehicle modification. Once installed, the Syvecs ECU integrates seamlessly with the car, unlocking a substantially higher level of engine and drivetrain control while retaining all standard OEM functionality.

The system is designed to remove the inherent limitations of the factory ECU while maintaining OEM refinement, drivability, and system integration.

Supported Platform

• Audi RS3 8Y1 (Pre-Facelift)

• Platform: MQB Evo

• Engine: 2.5 TFSI (pre-facelift variant)

Compatibility depends on engine variant, ECU configuration, and vehicle specification.

Key Advantages

• True plug-and-play installation with direct connection to factory wiring and connectors

• Full OEM system retention including dash functions, CAN communication, diagnostics, safety systems, and daily usability

• Designed specifically for early MQB Evo electrical and CAN architecture

• Motorsport-grade engine management without sacrificing OEM integration

• Scalable solution for vehicles progressing beyond stock power and hardware limits

Advanced Engine and Vehicle Control Capability

Depending on calibration and vehicle configuration, the Syvecs RS3 8Y1 kit supports:

• Fully configurable boost and torque control

• Flex-fuel and ethanol support

• Advanced load-based and torque-based control strategies

• Custom CAN integration with drivetrain and vehicle systems

• Support for upgraded injectors and fuel systems

• Motorsport-level engine protection and failsafe strategies

• Launch control, flat-shift, and performance features

• High-speed data logging and professional diagnostics

All calibration is carried out using Syvecs SCal software, giving professional tuners complete control over engine behaviour, safety logic, and performance strategy.

Designed for Serious RS3 Builds

The pre-facelift RS3 8Y1 introduced the MQB Evo platform along with increased factory ECU constraints. The Syvecs Plug-and-Play ECU Kit removes these limitations entirely, making it suitable for high-power road cars, big-turbo conversions, ethanol and multi-fuel setups, track and competition vehicles, and advanced development projects.

All of this is achieved while maintaining OEM drivability and full vehicle system integration.

Based on the Syvecs S7 Plus ECU, the Plug in ECU integrates with all the OEM Audi Electronics but allows full control of the engine offering some of the following features:

• Live Tuning of every aspect of the engine’s calibration, including signals sent to the DSG.
• Full Direct Injection and Pump Control.
• 10 Injector Support with 5 x DI Injectors and 5 x Port Injectors.
• Option to Remove DI injectors (Very high HP applications)
• Ability to select desired engine map, boost level, traction and launch control levels through steering wheel buttons or External switches
• Fully adjustable Launch control with Anti-lag strategies and Ramp in Maps.
• Full Variable Valve Timing control.
• Flex Fuel control option.
• Cruise Control option. (Radar Control and ACC/Lim Function NOT Supported)
• Fully functional with every other control module on the car.
• Closed loop Lambda Control with OEM Wideband Sensor.
• Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temperatures etc.
• Monitor and trimming of exhaust gas temperatures with Syvecs KT8 and Ktype Thermocouplers.
• Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.
• Rolling Antilag / Pit lane limiter strategies, great for building boost on a roll.
• Configurable engine safety trips on important parameters like lambda, oil temperature, oil pressure, air temp, coolant temp and more.
• Anti-theft and valet modes.
• Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track and connected to a wireless unit.
• Adjustable traction control strategies based on lateral g and individual wheel speed monitoring.
• 4 programmable target slip maps. An immediate torque reduction can be applied by the ECU via ignition retard or a fuel cut.
• Configurable Engine Safety Trips on all important parameters such as oil temperature and oil pressure.
• Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
• 4 different Pedal to Throttle Angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons.
• Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder. Ability to trigger full cylinder shutdown in severe knock conditions.
• Change torque reduction levels on shifts. Essential for very high power applications where the maximum reduction available via the stock ECU is not enough to prevent damage to components.
• Ability to change Torque ramp in after launch.
• Change throttle blip requests to match your torque band. Especially useful on oversized turbo installations.
• Run up to 7bar map sensors.
• Change injector dead times based on voltage levels for proper control.
• Change injector end angle to ensure injection point is properly calibrated.
• Ability to fit any type of external sensor to monitor and trigger safety trips from anything such as crank case pressure to damper position.
• Ability to use any size DBW throttle body e.g. Chevrolet LS7.
• Wet and Dry – wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.
• Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.
• Connect to external displays or loggers via a spare CAN connection - Check our TinyDash v2 - https://www.syvecs.com/product/syvecs-tinydash-v2-touchscreen/.
• View any input live with built in scope up to 1000hz.
• And much, much more!
