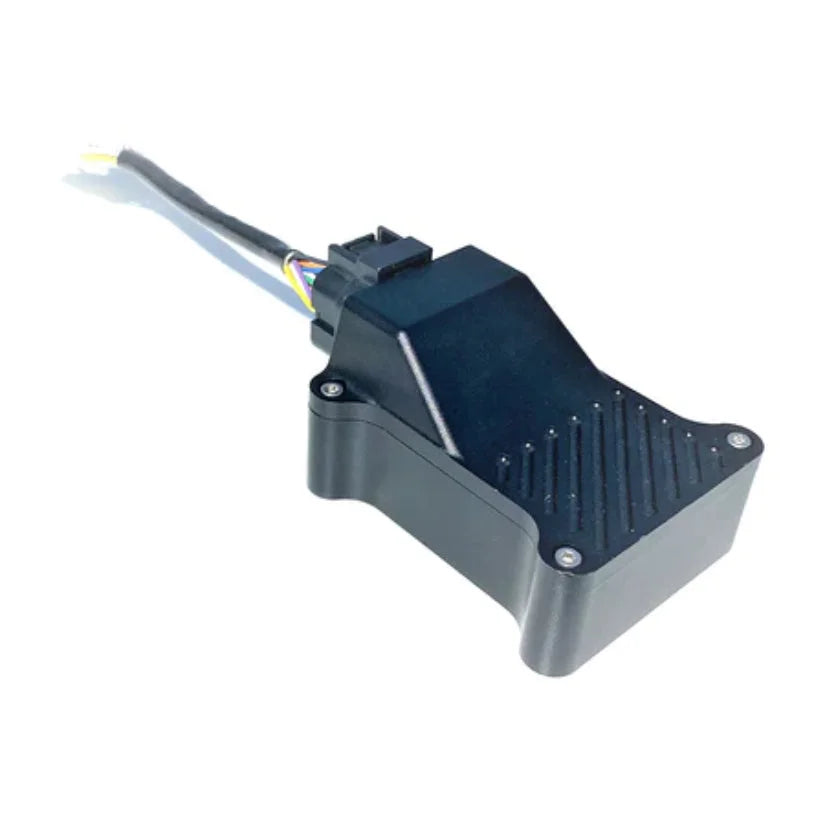

Syvecs AWD/4WD Controller Toyota GR Yaris

Introducing the Syvecs AWD Module specially designed for the Toyota Yaris GR, a groundbreaking standalone AWD/4WD/Centre Diff controller capable of effectively managing any AWD/4WD Solenoid/Motor with a maximum capacity of 30 Amps through advanced pin sharing logic.

Key Features:

Unveiling Control Potential:

• By integrating the Syvecs AWD Module, an unparalleled level of control is accessible. The module revolutionizes AWD performance by optimizing control strategies, enabling users to harness the full potential of the powertrain.

Incorporation of OEM CAN Information:

• The Yaris GR version of the module flawlessly replicates OEM CAN data. It leverages a plethora of variables from the OEM CAN network, such as Steering Angle, Brake Pressure, RPM, Throttle Position, Lateral G, Yaw, Longitudinal G, Speed, Temperatures, and mode switches, for enhanced control strategies.

Seamless Integration with Sport Mode Button:

• Utilize the Sport Mode Button on the Yaris GR to enable map switching, allowing drivers to transition seamlessly between Awd Select 1, 2, and 3. This facilitates on-the-fly customization of multiple maps, including the activation of burnout mode when Hazards, Handbrake, or an external switch is engaged.

Customization and Safety Measures:

• Syvecs offers optional components such as external Burnout switches and Live adjustment potentiometers, providing drivers with the ability to fine-tune AWD Duty while driving or effortlessly switch to 2WD mode.
• Incorporate Limp Protection mechanisms that caution drivers about substantial slips, high currents, and elevated temperatures. Unlike OEM controllers that deactivate outputs, Syvecs' safeguards maintain AWD functionality, crucial for high horsepower applications.

Syvecs Scal Software Compatibility:

• The Scal Software offers direct connectivity to the module, empowering users to adjust over 40 maps influencing the solenoids/motors responsible for AWD control.

Versatile Array of Configurable Maps:

• 4 x Base Duty Tables
• 4 x Adders with enable maps for Left Foot Braking, Front Slip, Rear Slip, and Centre Slip.
• 4 x Multipliers with enable maps for Steering Angle, AWD Temp, AWD Pressure, and AWD Potentiometer.
• Calibration of Tyre Diameter under sensors for precise tuning.
• 2WD/Burnout Mode activation.
• Map switching through Dedication Switched input, Can bus Message, and OEM Functions.
• Diverse limiters including Maximum Duty, Launch Control Limit, Duty Rate of Change, Decay/Hold Functions, Limp Mode, Over Current Protection, Over Slip Protection, Over Temp Protection, and AWD Cooling pump control.

Can Bus Transmit Functionality:

• The module offers a dedicated Can bus transmit section for sending AWD variables to external control units for monitoring or integrating them into the OEM Canbus system through custom Identifiers and byte structuring.

The Syvecs AWD Module for Toyota Yaris GR models offers an unrivaled avenue for elevating AWD performance, thanks to its adaptable maps, safety measures, and integration flexibility. It empowers drivers to customize their vehicle's behavior based on their unique preferences and requirements.
