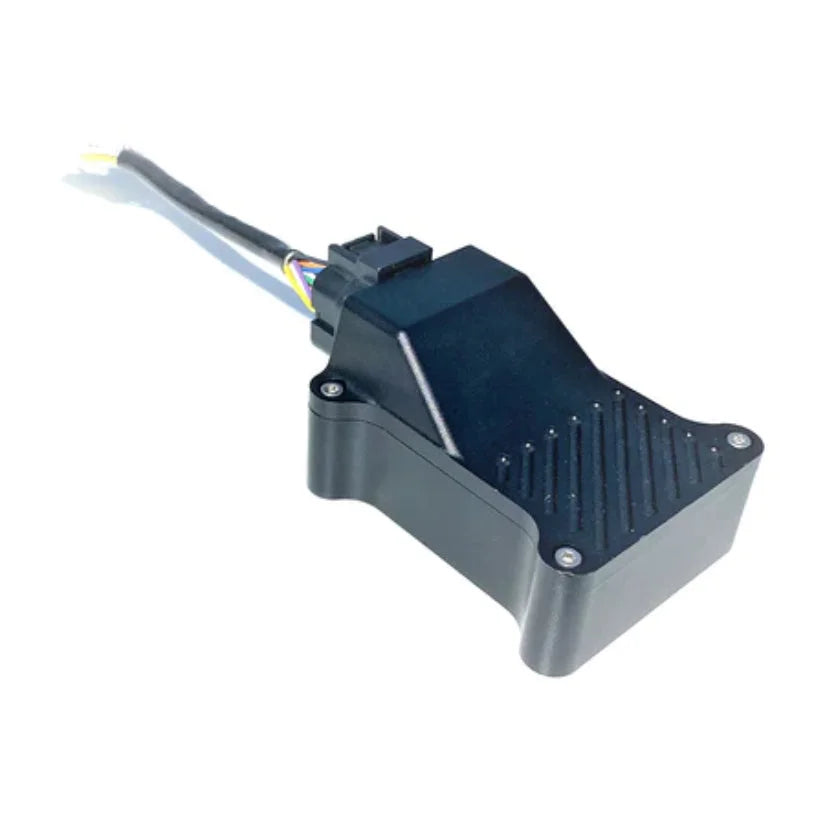

Syvecs AWD/4WD Controller Toyota GR Corolla

Introducing the Syvecs AWD Module specifically engineered for the Toyota GR Corolla, an innovative standalone AWD/4WD/Centre Diff controller designed to effectively manage any AWD/4WD Solenoid/Motor with a maximum capacity of 30 Amps through advanced pin sharing logic.

Key Features:

Unlocking Control Potential:

• By incorporating the Syvecs AWD Module, a new realm of control becomes attainable. The module redefines AWD performance by optimizing control strategies, enabling users to harness the full potential of the powertrain.

Integration of OEM CAN Information:

• The GR Corolla version of the module perfectly replicates OEM CAN data. It leverages a variety of variables from the OEM CAN network, including Steering Angle, Brake Pressure, RPM, Throttle Position, Lateral G, Yaw, Longitudinal G, Speed, Temperatures, and mode switches, to enhance control strategies.

Seamless Interaction with Sport Mode Button:

• Utilize the Sport Mode Button on the GR Corolla to enable map switching, allowing drivers to transition seamlessly between Awd Select 1, 2, and 3. This provides the convenience of real-time customization of multiple maps, including the option to activate burnout mode when Hazards, Handbrake, or an external switch is engaged.

Customization and Safety Measures:

• Syvecs offers optional components such as external Burnout switches and Live adjustment potentiometers, providing drivers with the ability to fine-tune AWD Duty while driving or effortlessly switch to 2WD mode.
• Incorporate Limp Protection mechanisms that caution drivers about substantial slips, high currents, and elevated temperatures. Unlike OEM controllers that deactivate outputs, Syvecs' safeguards maintain AWD functionality, crucial for high horsepower applications.

Compatibility with Syvecs Scal Software:

• The Scal Software facilitates direct connectivity to the module, empowering users to adjust over 40 maps influencing the solenoids/motors responsible for AWD control.

A Versatile Array of Configurable Maps:

• 4 x Base Duty Tables
• 4 x Adders with enable maps for Left Foot Braking, Front Slip, Rear Slip, and Centre Slip.
• 4 x Multipliers with enable maps for Steering Angle, AWD Temp, AWD Pressure, and AWD Potentiometer.
• Calibration of Tyre Diameter under sensors for precise tuning.
• Activation of 2WD/Burnout Mode.
• Map switching through Dedication Switched input, Can bus Message, and OEM Functions.
• Varied limiters including Maximum Duty, Launch Control Limit, Duty Rate of Change, Decay/Hold Functions, Limp Mode, Over Current Protection, Over Slip Protection, Over Temp Protection, and AWD Cooling pump control.

Can Bus Transmit Functionality:

• The module features a dedicated Can bus transmit section for sending AWD variables to external control units for monitoring or integration into the OEM Canbus system through custom Identifiers and byte structuring.

The Syvecs AWD Module for Toyota GR Corolla models offers an unprecedented opportunity to elevate AWD performance, thanks to its adaptable maps, safety features, and integration flexibility. It empowers drivers to personalize their vehicle's behavior based on individual preferences and requirements.
