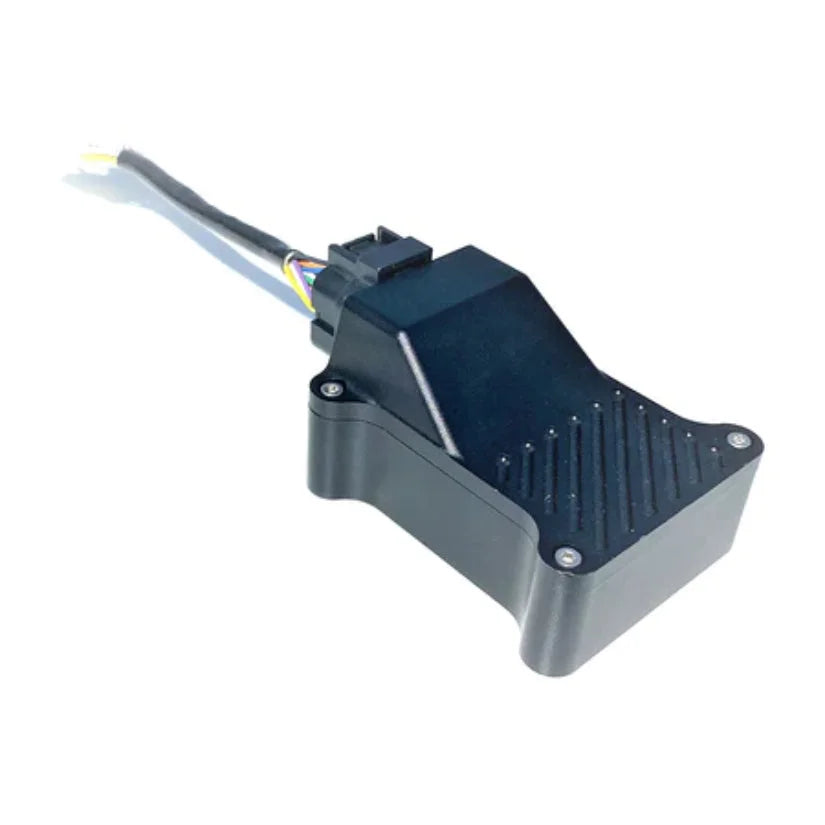

Syvecs AWD/4WD Controller 911 (997)

Introducing the Syvecs AWD Module tailored for Porsche 997.1 and 997.2 models, offering an advanced standalone AWD/4WD controller capable of managing any AWD/4WD Solenoid/Motor up to 30 Amps using innovative pin sharing logic.

Key Features:

Unleash Control Potential:

• Replace factory-designed AWD controllers with the Syvecs AWD Module to unlock an entirely new level of control, enabling users to optimize performance and unleash the full potential of the powertrain.

Enhanced Control Strategies:

• The module precisely replicates OEM CAN information while integrating various variables from the OEM CAN network, such as Steering Angle, Brake Pressure, RPM, Throttle Position, Lateral G, Longitudinal G, Speed, Temperatures, and mode switches, to tailor control strategies.

Universal Engine Management (ECU) Compatibility:

• Designed to seamlessly integrate with any Engine Management (ECU) System, ensuring versatile AWD control across a range of engine setups.

Integration with Sport Mode Button:

• Utilize the Sport Mode Button on the Porsche 997.1 and 997.2 models to facilitate map switching, allowing users to effortlessly transition between Awd Select 1 and 2. This flexibility empowers drivers to fine-tune various maps, including enabling burnout mode in the presence of the handbrake.

Customization and Safety Measures:

• Syvecs offers optional components like external Burnout switches and Live adjustment potentiometers, granting drivers the ability to modify AWD Duty on the go or switch to 2WD mode with ease.
• Limp Protection features safeguard against large slips, high currents, and high temperatures. Unlike OEM controllers, which shut down outputs, Syvecs' protections provide alerts to drivers while maintaining AWD functionality, particularly beneficial for high horsepower applications.

Syvecs Scal Software Compatibility:

• Users can seamlessly connect to the module using Scal Software, granting access to adjust over 40 maps influencing solenoids/motors controlling AWD systems.

Diverse Range of Configurable Maps:

• 4 x Base Duty Tables
• 4 x Adders with enable maps for Left Foot Braking, Front Slip, Rear Slip, and Centre Slip.
• 4 x Multipliers with enable maps for Steering Angle, AWD Temp, AWD Pressure, and AWD Potentiometer.
• Tyre Diameter adjustment under sensors for precise calibration.
• 2WD/Burnout Mode.
• Map activation through Dedication Switched input, Can bus Message, and OEM Functions.
• Various limiters for Maximum Duty, Launch Control Limit, Duty Rate of Change, Decay/Hold Functions, Limp Mode, Over Current Protection, Over Slip Protection, Over Temp Protection, and AWD Cooling Pump control.

Can Bus Transmit Functionality:

• The module includes a dedicated Can bus transmit area enabling users to send AWD variables to external control units for monitoring or to the OEM Canbus system using custom Identifiers and byte structuring.

The Syvecs AWD Module for Porsche 997.1 and 997.2 models transforms AWD control into a customizable and responsive experience. By offering a wide range of maps, safety measures, and integration possibilities, this module empowers drivers to tailor their vehicle's performance to their specific preferences and needs.
