K-Tuned Water Plate With Alternator Brackets Honda K-Series

For several years now racers have used electric water pumps to reduce the power robbing effects of parasitic drag from their engines. The reason is pretty simple, by reducing the number of accessories the crank needs to turn there can be some noticeable and impressive gains. The K-Tuned Water Pump Block Off Plate system was designed to setup a K-series engine to use an electric water pump cooling system. It replaces all of the bulky and heavy OEM accessories with a simple lightweight aluminum plate. The original alt bracket setup was designed to hold the older and lighter B or D series alternator and works well. The only difference is a little extra work for installation, so we decided to design a compatible alternator bracket setup that works with the original oem K-Series alternator.

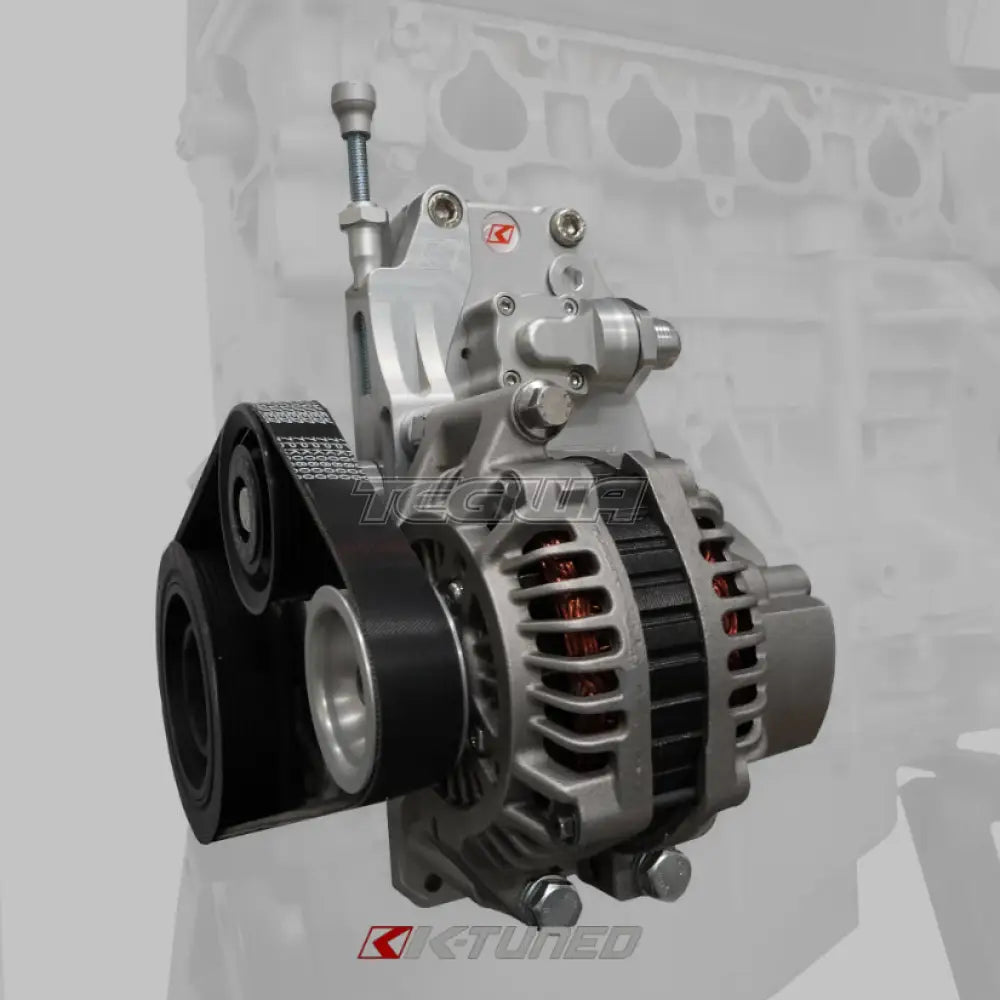

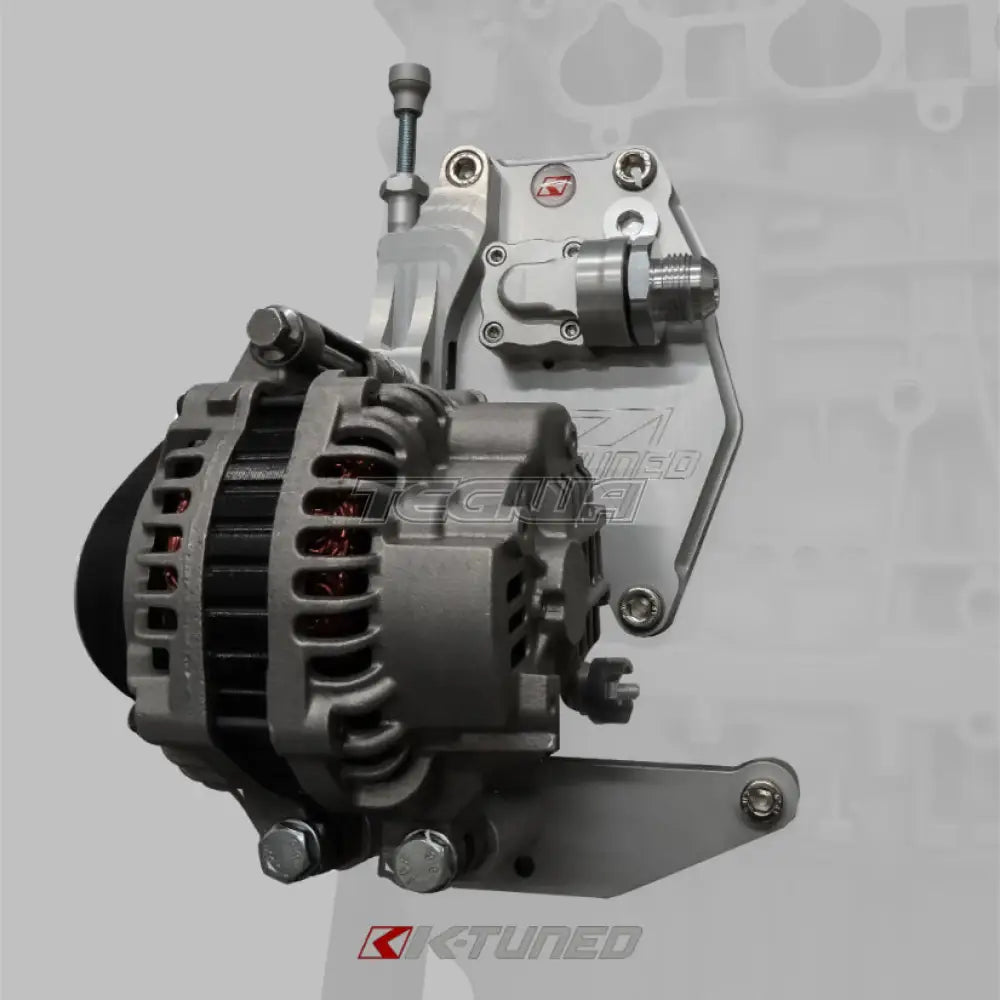

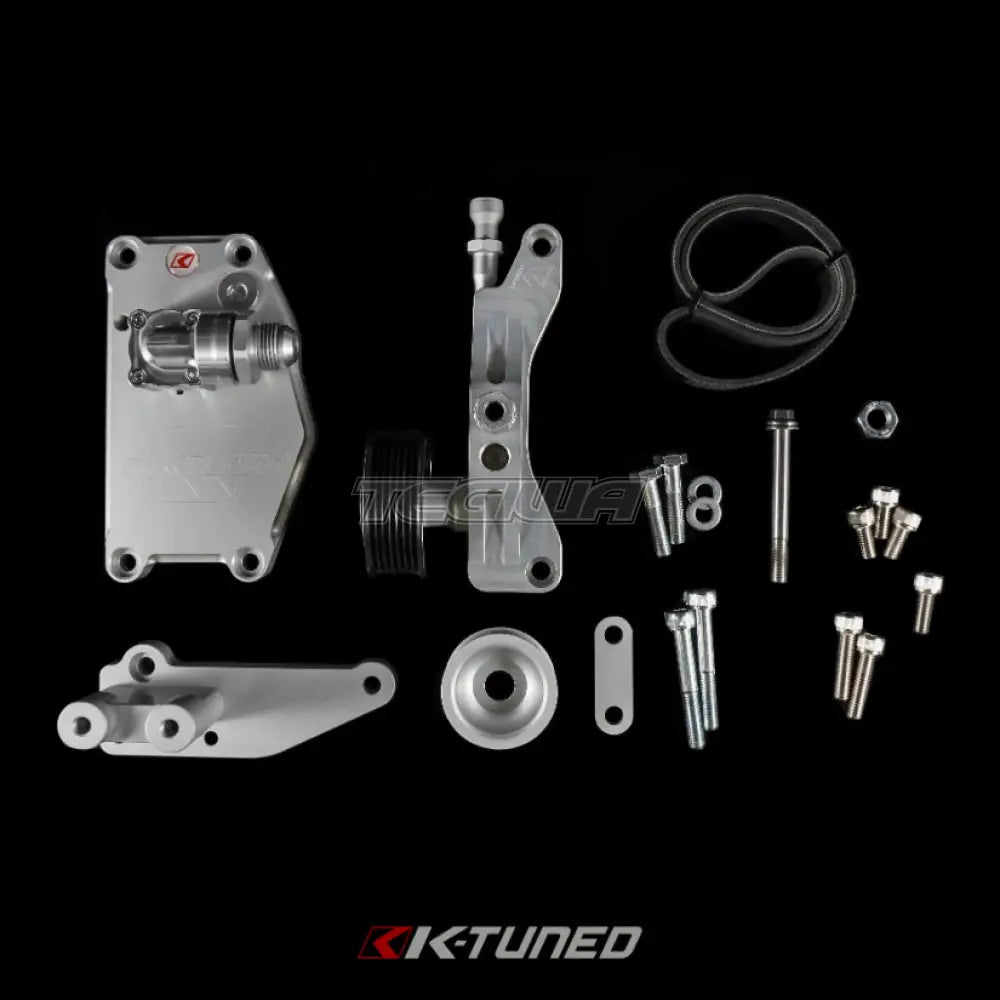

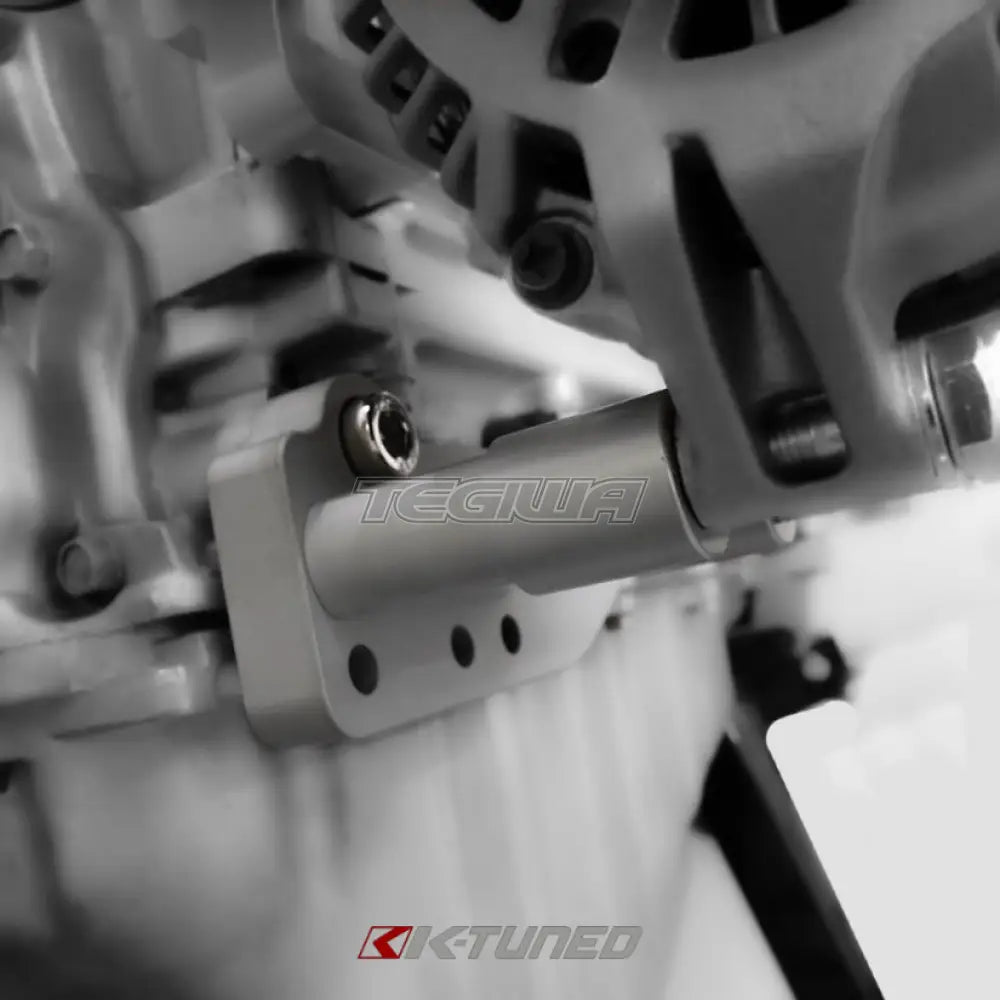

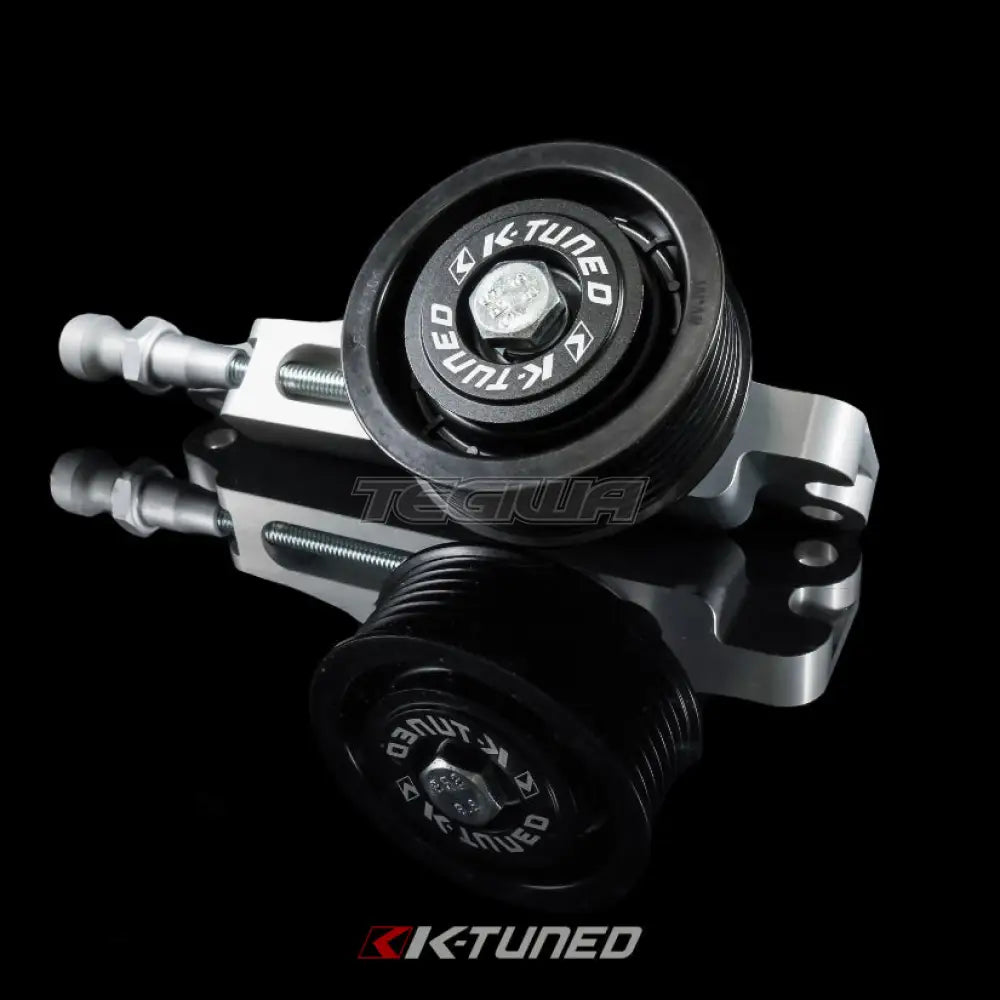

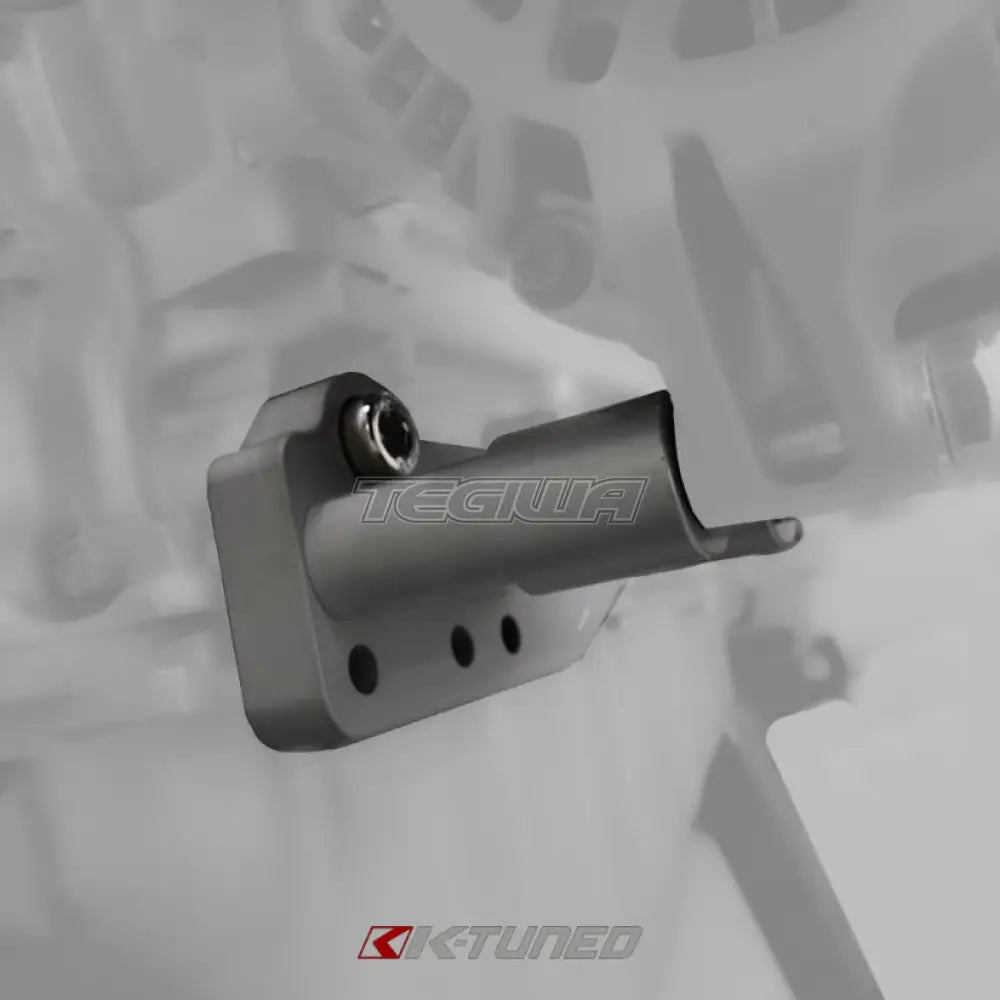

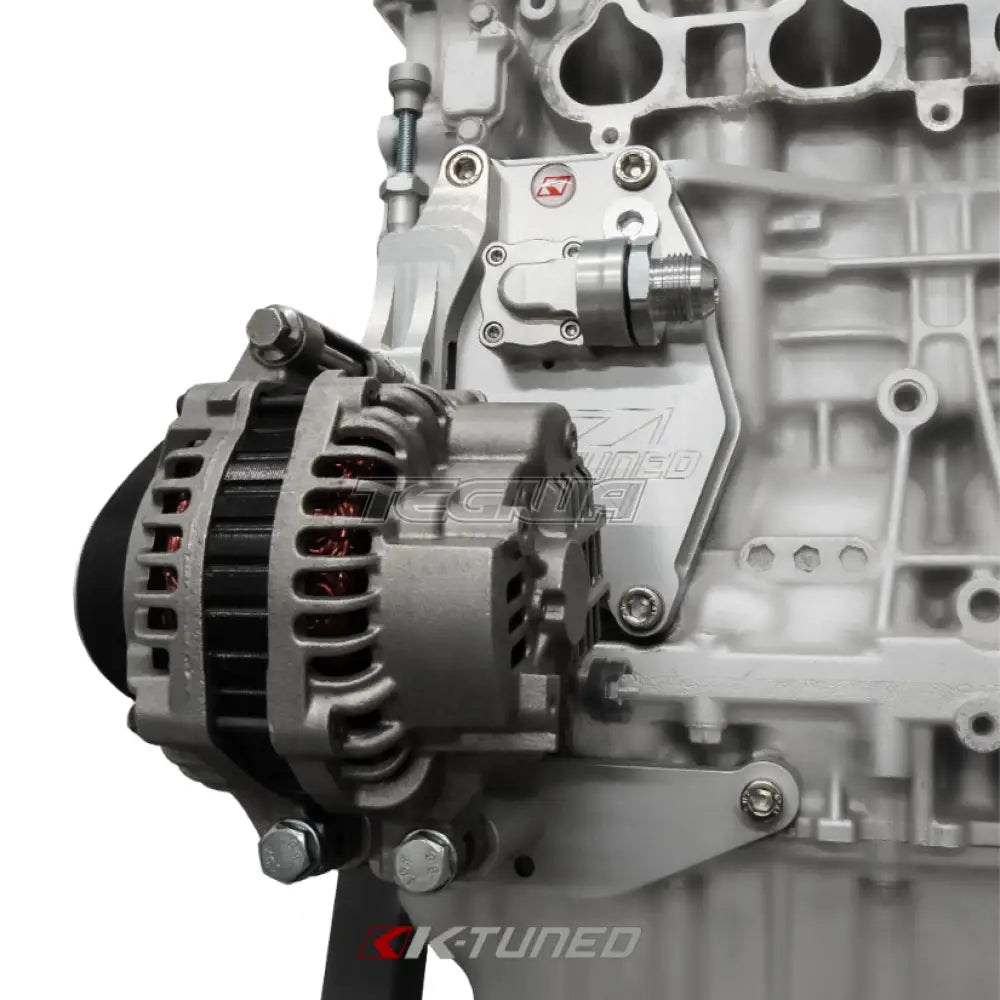

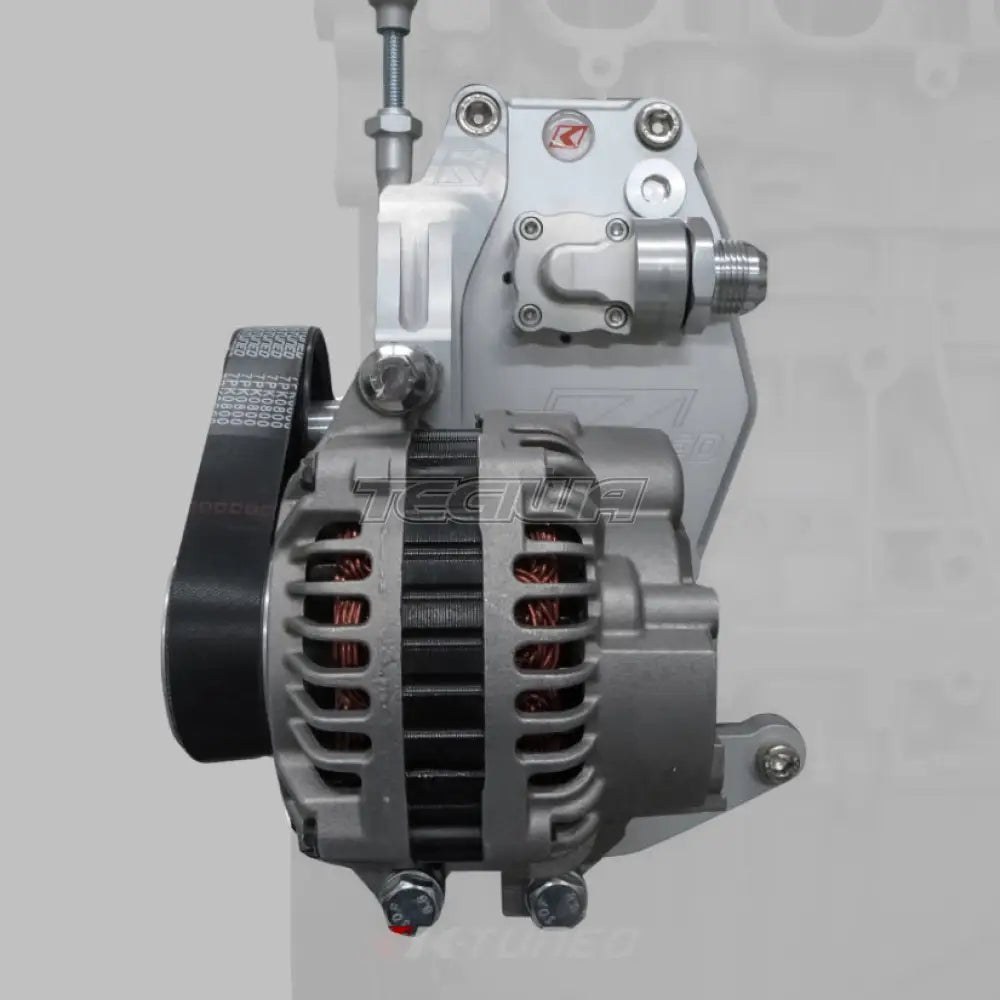

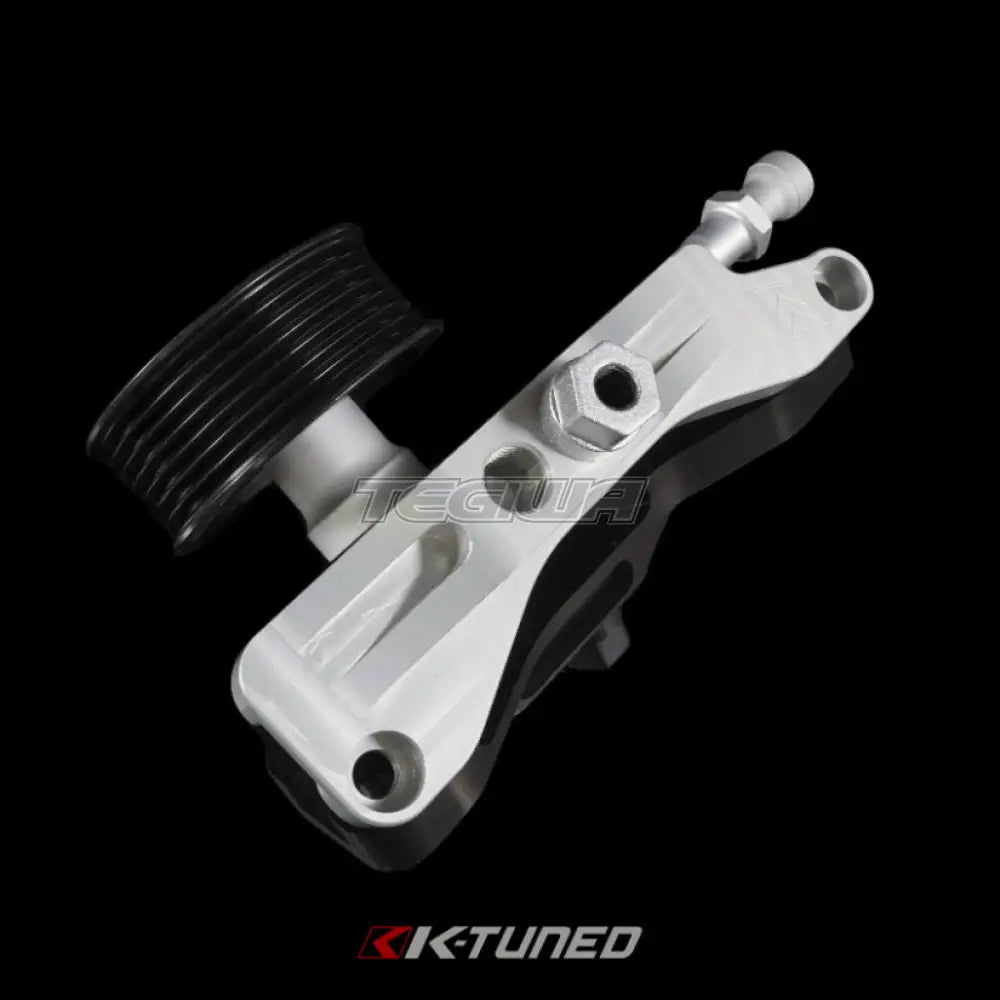

This updated kit features a fully adjustable tensioner with an integrated pulley that mounts cleanly on the left side of our original Water Plate. The lower alt bracket then easily bolts up to existing holes on most K20 and K24A engine blocks. The result is a setup that is much simpler to install, with no additional parts or wiring needed. With the new version of this kit, We have upgraded our mounting hardware to include a larger ARP upper alternator mounting bolt, as well as 2 sets of larger bolts depending on which style K series alternator you have, for the lower mounting bracket. There are 2 mounting positions available to allow proper fitment with most stock crank pulleys. For the alternator, we made a lightweight CNC machined 6061 billet aluminum alternator pulley to replace the heavy oem unit. We have also included a custom length 7-rib belt, that fits with most oem crank pulleys and all hardware for installation. As a final bonus, check out our custom billet water pump bracket, it has been designed to hold our K-Tuned electric water pump right beside the plate setup. Just like the other brackets, this bolts up perfectly to existing holes on most K20 and K24A engine blocks. We can now confidently say that the K-Tuned Water Plate Kit is more complete than ever.

Q2 - Can I run AC, Power Steering, Supercharger, or any other belt driven accessories?

A2 -The simple answer is NO. The water plate kit will run at most only an alternator depending on which kit you select. There is no provision to run any other accessories. However, nothing is impossible. We have seen some adapt our kits to run some accessories but this is something they have done on their own.
