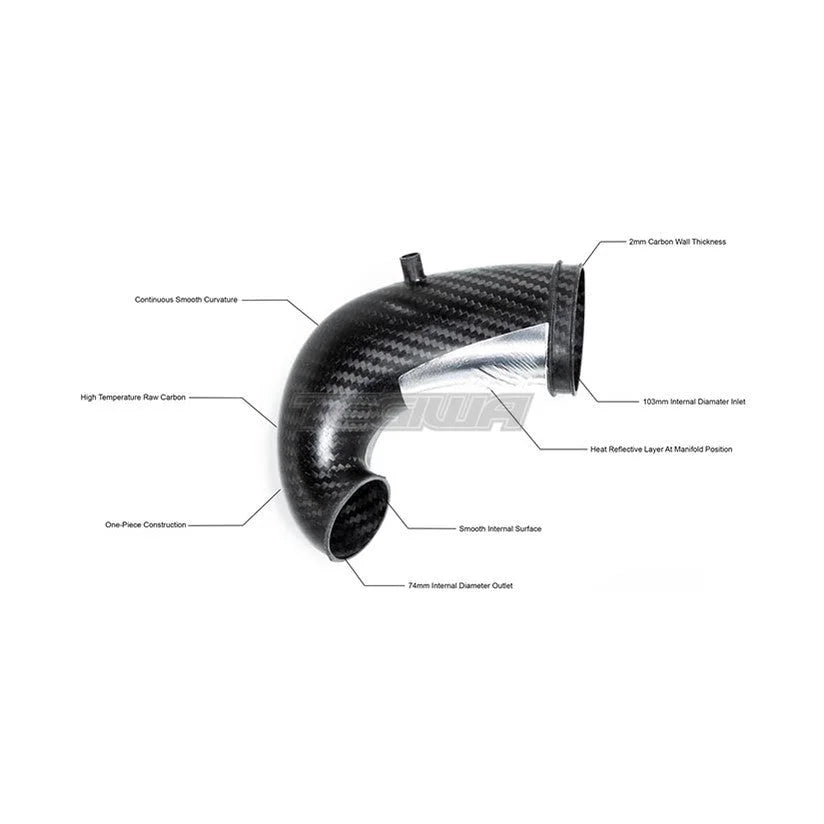

Eventuri Carbon Fibre Turbo Inlet Audi RS3 8V 8Y TTRS 8S

The Eventuri Carbon Turbo Inlet Elbow for the Audi RS3 / TTRS is a world-first all-carbon turbo inlet, developed around three key objectives: volume, flow quality and temperature management. At 103mm inlet diameter and 74mm outlet diameter, the Eventuri elbow is significantly larger than the stock unit (72mm inlet, 56.4mm outlet), encapsulating a much larger internal volume to de-restrict the flow path to the turbo.

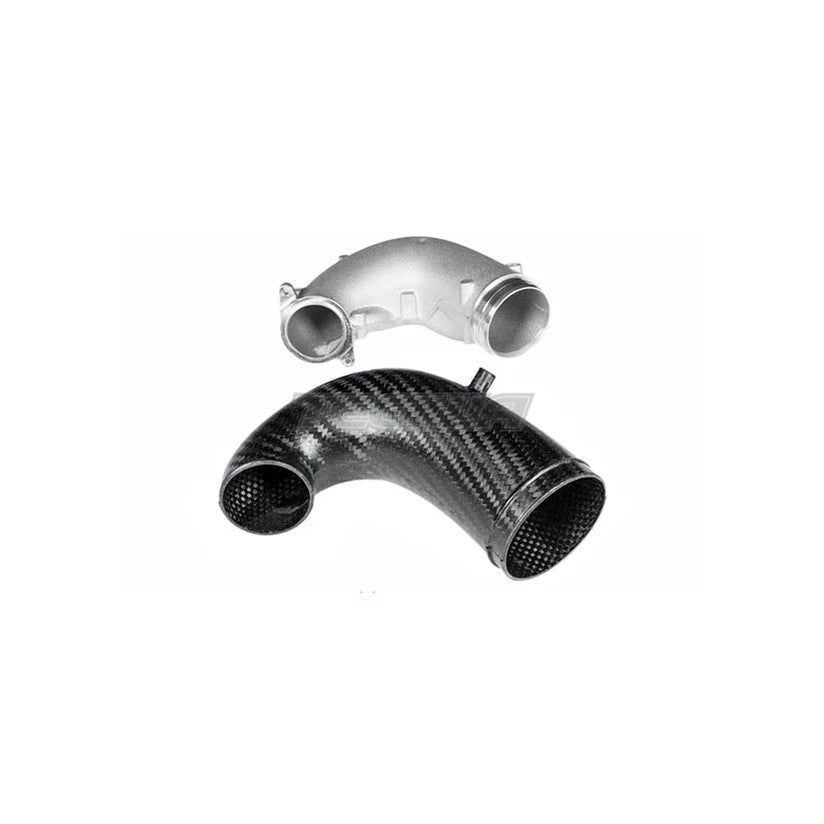

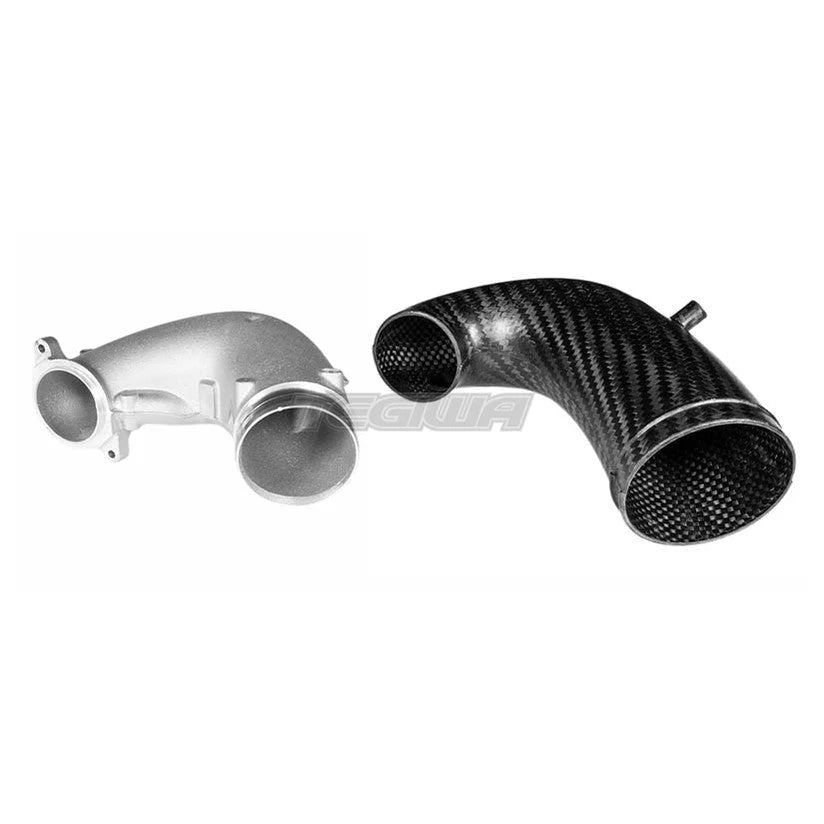

High temperature prepreg carbon fibre achieves a smooth internal surface throughout, contrasting with the rough cast aluminium of the stock and other aftermarket elbows. A silicon coupler with an integrated thermal spacer prevents direct contact between the carbon elbow and the turbo housing, minimising heat transfer into the airflow.

Performance gain (RS3 with hybrid turbo): 14-20hp / 30-35ft-lb

Key Features:

• Inlet diameter: 103mm Eventuri vs 72mm stock
• Outlet diameter: 74mm Eventuri vs 56.4mm stock
• 42% flow rate increase over stock at 24" H2O using stock flange
• High temperature prepreg carbon fibre for a smooth internal surface and low thermal conductivity

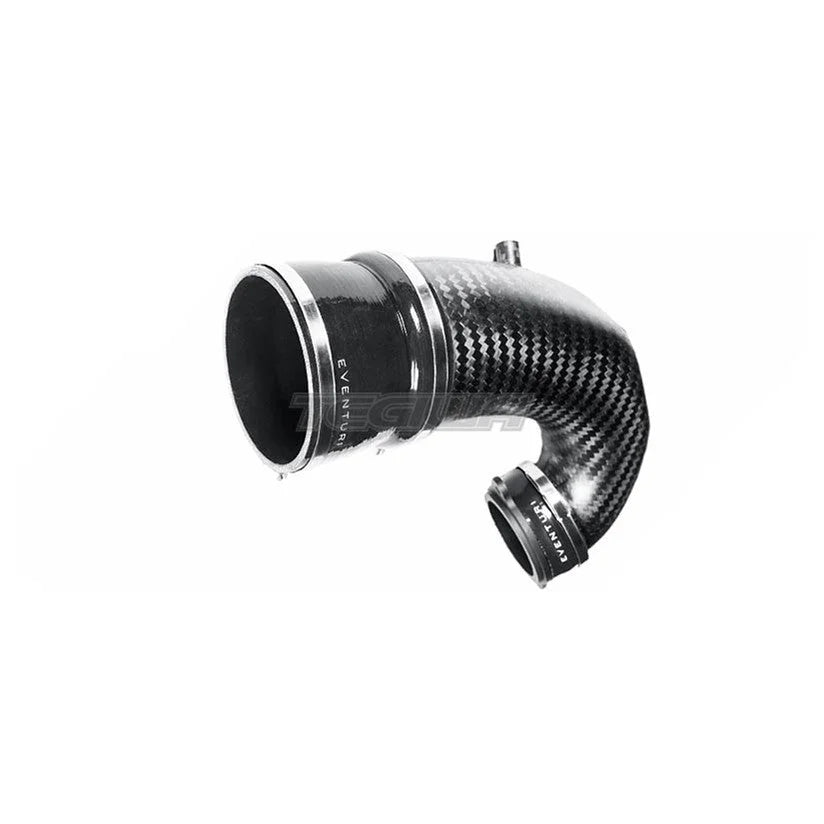

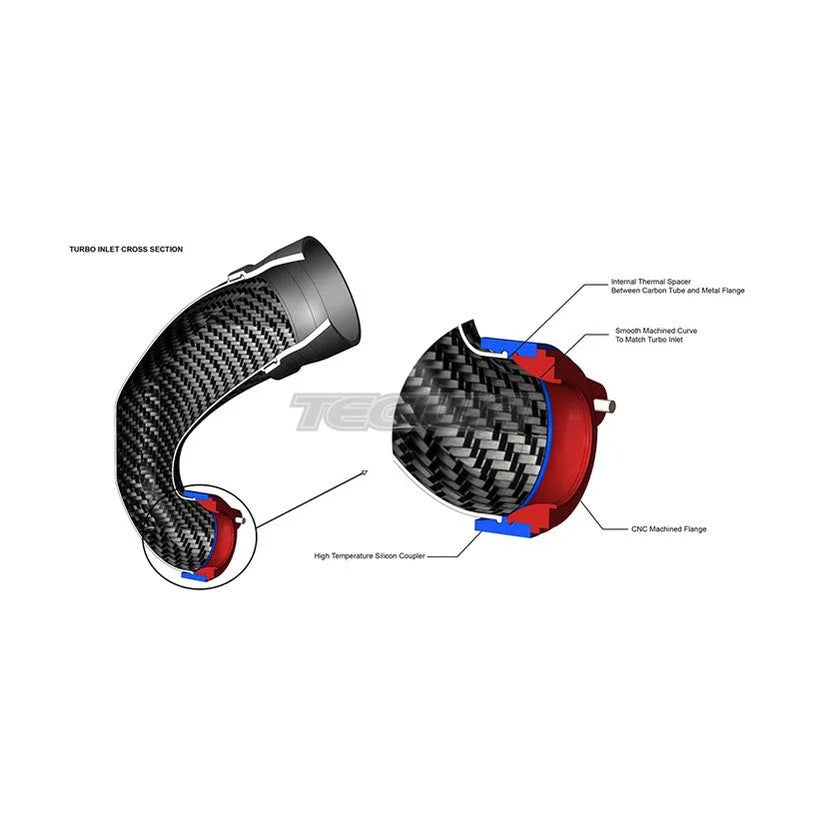

• Silicon coupler with integrated thermal spacer prevents direct contact between carbon elbow and turbo housing
• Smooth elbow curvature minimises turbulence through the flow path
• Finished in raw carbon with no clearcoat

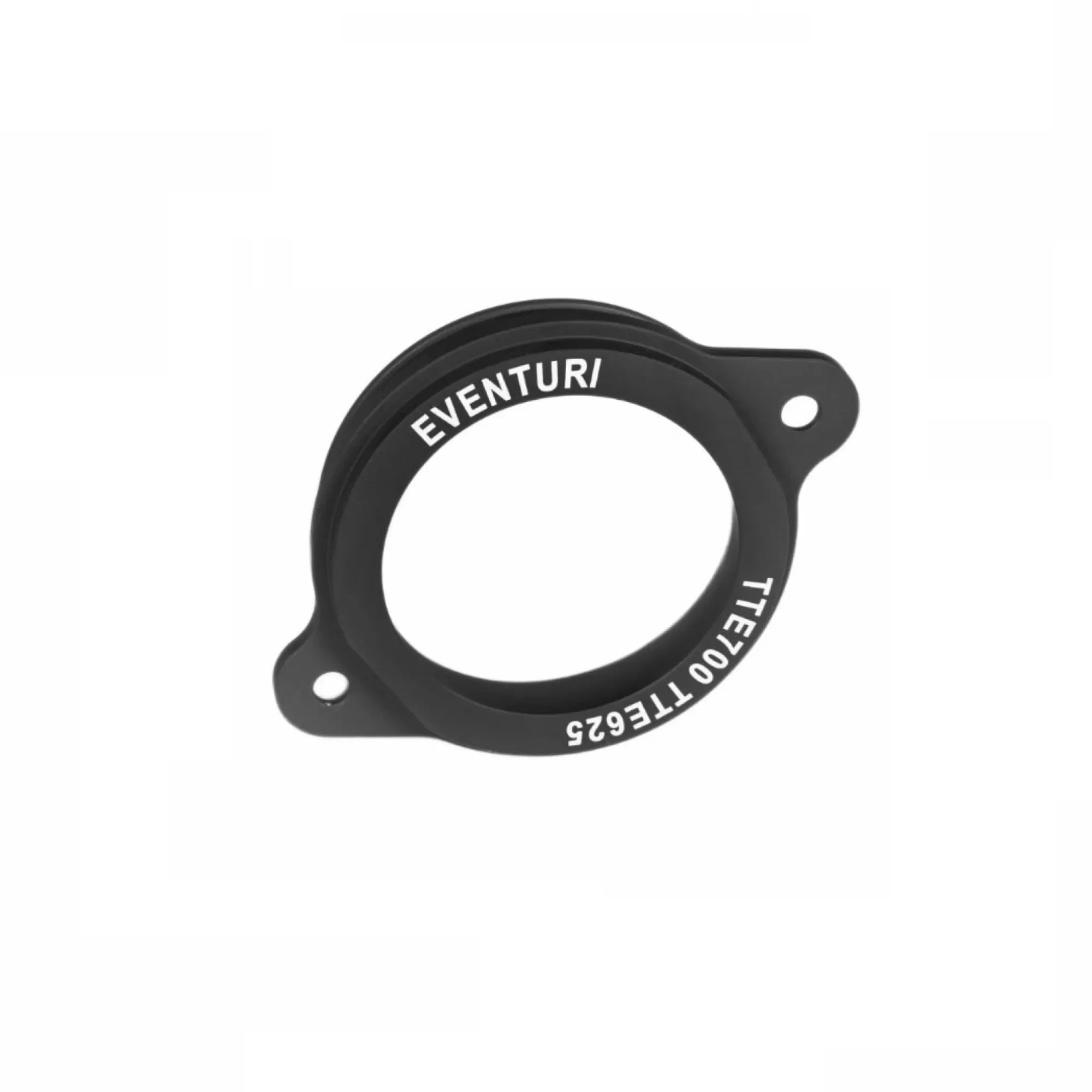

• Optional turbo flanges available for popular hybrid turbos


Compatible With:

• Audi RS3 8V Gen 2
• Audi RS3 8Y
• Audi RSQ3 F3
• Audi TTRS 8S
• Left and right hand drive
