Eventuri Carbon Fibre Intake Toyota Supra B48 A90 MK5

The Eventuri Carbon Intake for the Toyota GR Supra MK5 2.0 (B48) provides a less restrictive flow path to the turbo while maintaining low inlet temperatures. The intake is positioned next to the exhaust manifold, which rapidly heat soaks the engine bay.

Eventuri's solution is a fully sealed dual-feed carbon fibre airbox with a heat shield lined with gold reflective material to minimise radiative heat transfer. A secondary cold air feed extends into the wheel arch area via a scoop that protrudes behind the front wheel, incorporating an internal splash guard to deflect water away from the filter. The stock convoluted intake tube is replaced with a smooth carbon tube with a starting internal diameter of 111mm (4.4"), tapering down to match the turbo inlet - an 82% increase in cross-sectional area over the stock tube. A removable panel on the airbox allows the optional headlamp duct to feed cold air directly to the filter for race applications.

Filter Type:

• L

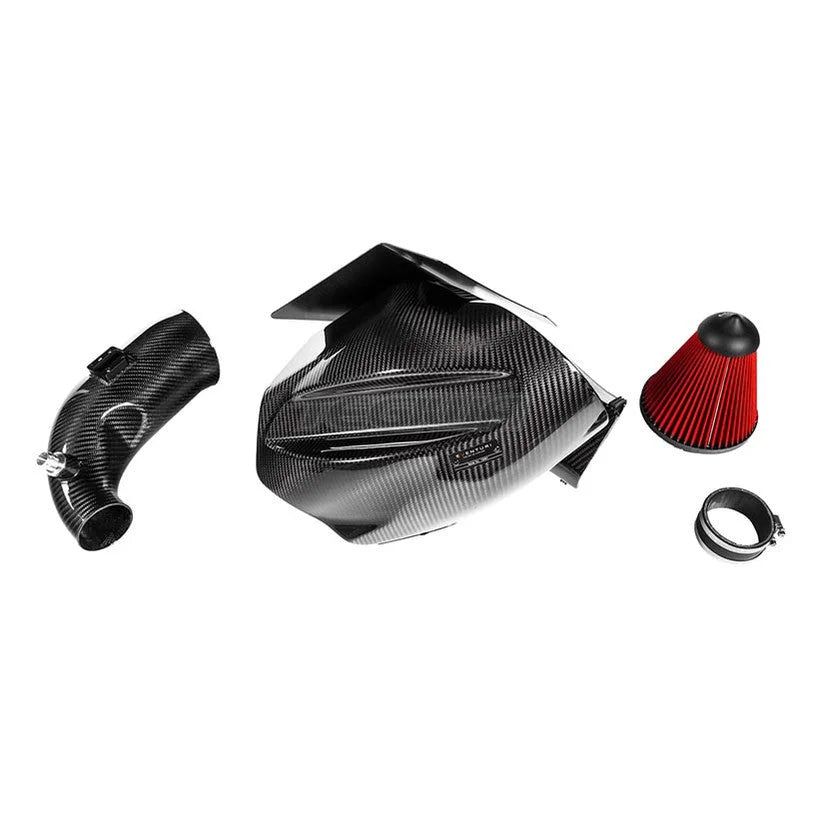

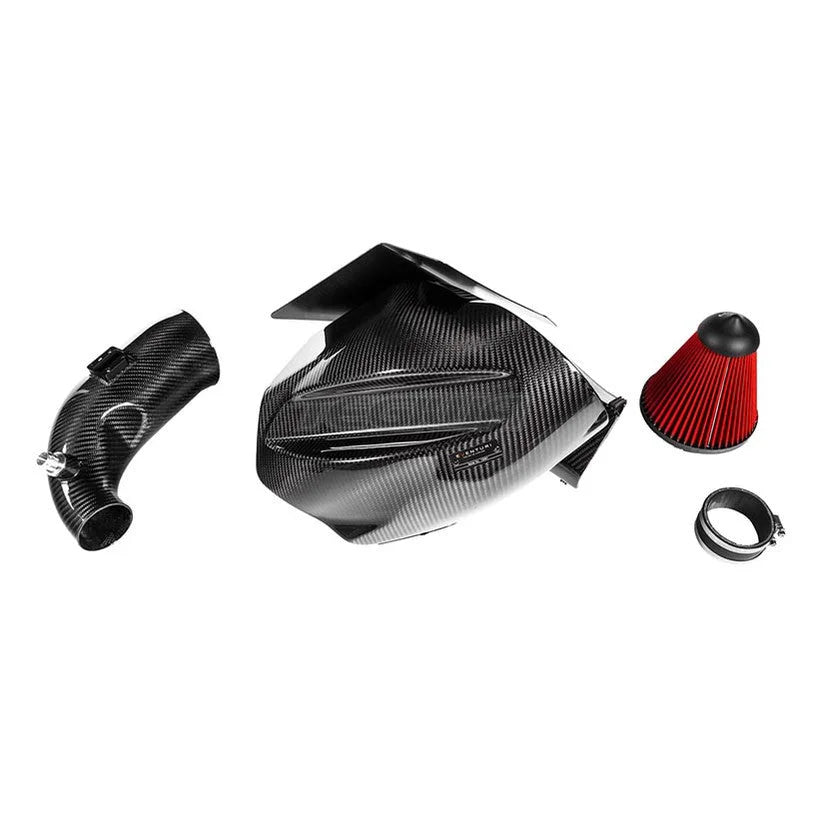

Kit Includes:

• Carbon fibre airbox with dual feeds
• Bespoke high-flow dry cone filter
• Carbon fibre inlet tube with 111mm opening internal diameter
• CNC-machined temperature sensor mount
• CNC-machined breather adapter
• Heat shield with gold reflective backing
• Laser cut stainless steel brackets
• Silicon coupler with OEM specification clamps

Key Features:

• Fully sealed dual-feed carbon fibre airbox prevents heat soak
• Secondary cold air feed extends into the wheel arch with internal splash guard
• Heat shield with gold reflective lining minimises radiative heat transfer from the exhaust manifold
• Airbox maximised in size with recess to accommodate strut braces
• Carbon inlet tube with 111mm (4.4") starting internal diameter - 82% larger cross-sectional area than stock
• Stock flexible convoluted inlet tube replaced with smooth carbon tube for laminar airflow
• Removable panel on airbox for use with optional Eventuri headlamp duct
• Bespoke double-layered dry non-woven mesh cone filter with internal flow guiding cone, ISO-tested to OEM standards
• 100% prepreg carbon fibre with no fibreglass

Compatible With:

• Toyota GR Supra MK5 2.0 (B48)
