Eventuri Carbon Fibre Intake System BMW X3 X4 M40i G01 G02

The Eventuri Carbon Intake for the BMW X3 / X4 M40i provides a less restrictive flow path to the turbo while maintaining low inlet temperatures. The proximity of the intake system to the exhaust manifold in the M40i results in rapid engine bay heat build-up, elevating intake air temperatures and reducing engine performance.

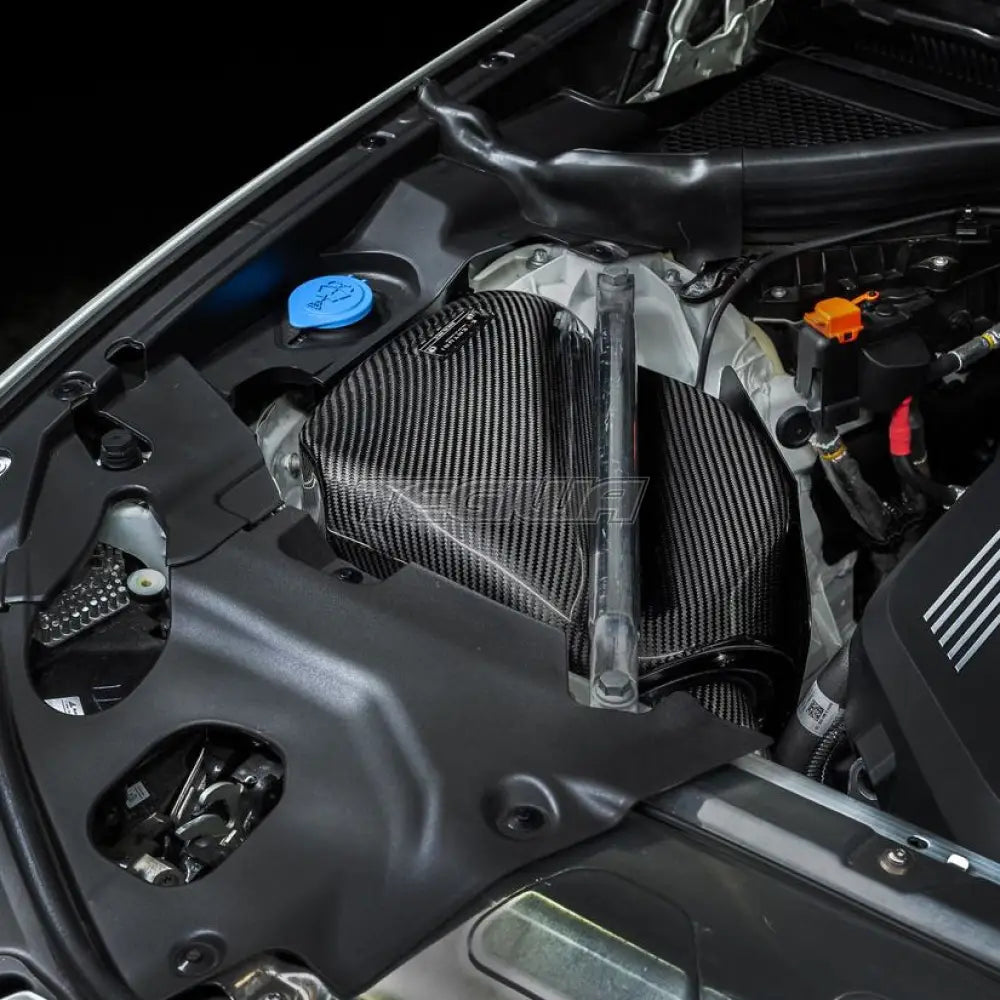

Eventuri's solution is a fully sealed airbox with a heat shield lined with gold reflective material to minimise radiative heat transfer from the exhaust manifold. The airbox has been maximised in size with a recess to accommodate the strut brace. The stock convoluted intake tube is replaced with a prepreg carbon tube featuring an internal diameter of 109mm (4.3"), tapering smoothly down to match the turbo inlet. A custom high-flow dry filter with a larger filtration area than the stock filter completes the system.

Filter Type

• L

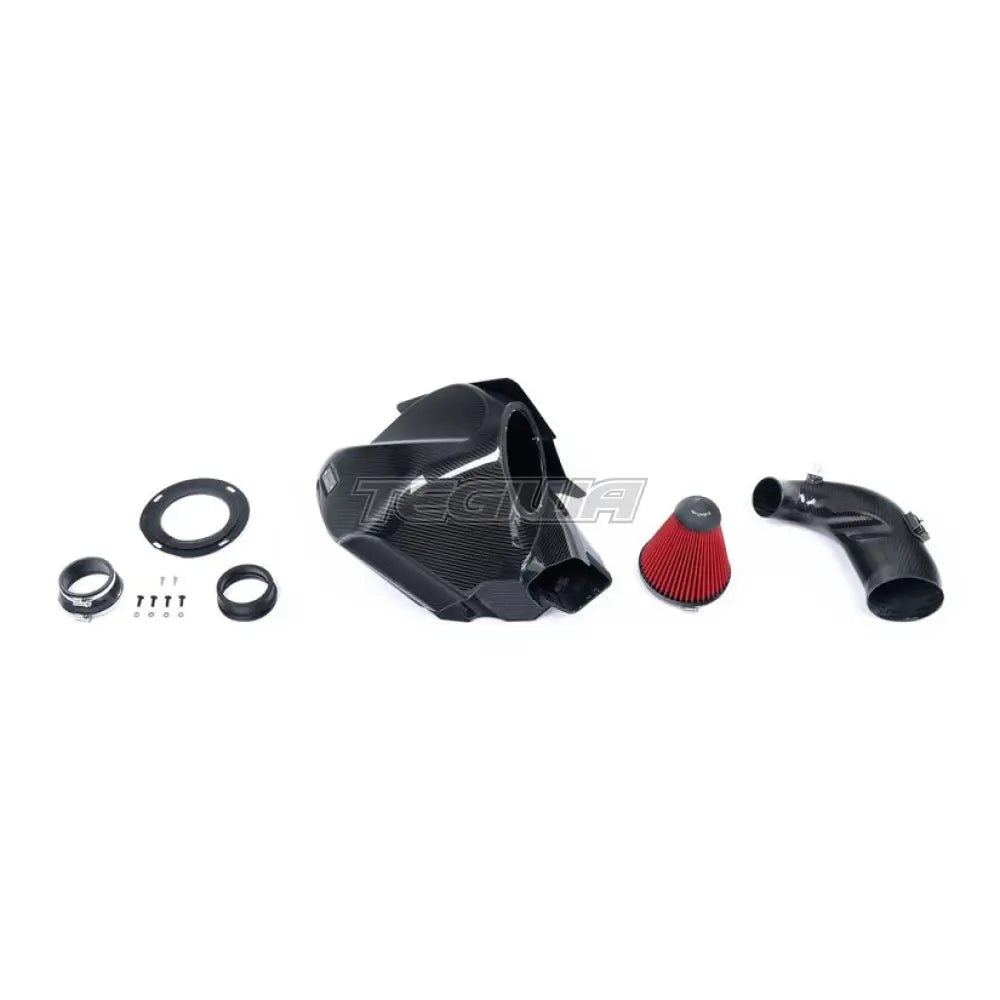

Kit Includes:

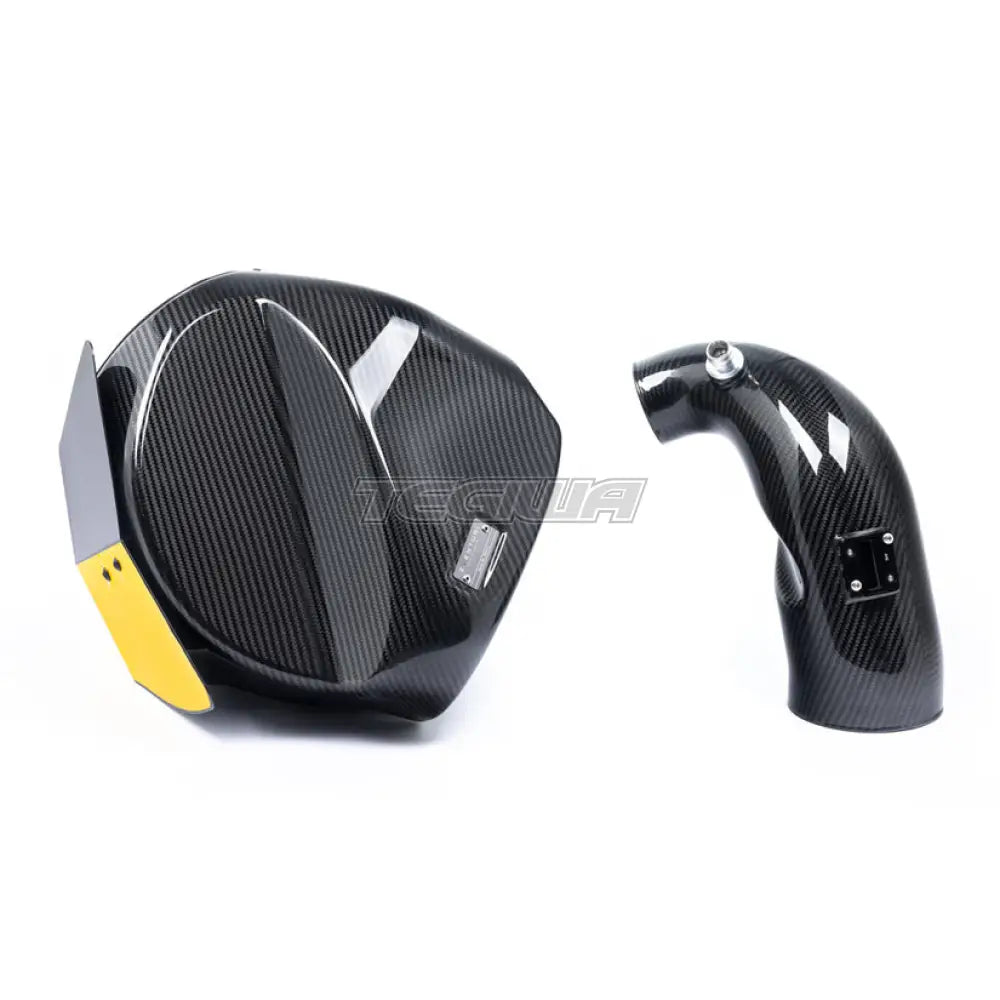

• Carbon fibre airbox
• Bespoke high-flow dry cone filter
• Carbon fibre inlet tube
• CNC-machined temperature sensor mount
• CNC-machined breather adapter
• CNC-machined turbo flange
• Heat shield with gold reflective backing
• Laser cut stainless steel brackets
• Silicon coupler with OEM specification clamps

Key Features:

• Fully sealed airbox prevents the turbo drawing in heated engine bay air
• Heat shield with gold reflective lining minimises radiative heat transfer from the exhaust manifold

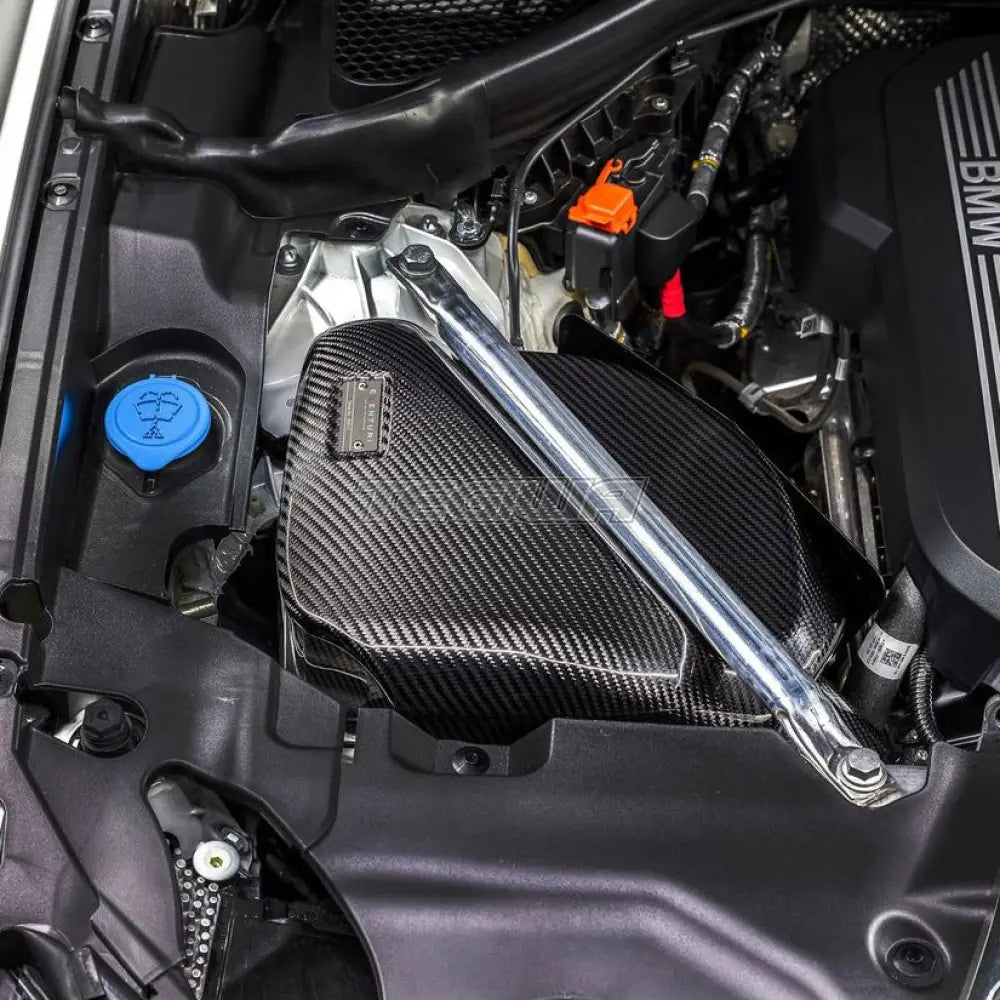

• Airbox maximised in size with recess to accommodate the strut brace
• Prepreg carbon inlet tube with 109mm (4.3") internal diameter, tapering smoothly to the turbo inlet
• 100% prepreg carbon fibre with no fibreglass - smooth internal surface for laminar airflow
• Custom high-flow dry filter with larger filtration area than stock, ISO-tested filtration performance

Compatible With:

• BMW X3 M40i
• BMW X4 M40i
