Eventuri Carbon Fibre Intake BMW B58 Z4 G29 M40i F2X

The Eventuri Carbon Intake for the BMW G29 Z4 3.0 B58 provides a less restrictive flow path to the turbo while maintaining low inlet temperatures. The intake is positioned next to the exhaust manifold, which rapidly heat soaks the engine bay. Eventuri's solution is a fully sealed dual-feed carbon fibre airbox with a heat shield lined with gold reflective material to minimise radiative heat transfer from the exhaust manifold.

A secondary cold air feed draws from an additional opening into the wheel arch area. A removable panel on the side of the airbox allows the optional headlamp duct to provide a further direct cold air feed for race applications. The stock convoluted inlet tube is replaced with a smooth carbon tube with an internal diameter of 111mm (4.4"), tapering smoothly to the stock turbo inlet - an 82% increase in cross-sectional area over the stock tube (OEM: 80.8mm / 3.2").

Filter Type:

• L

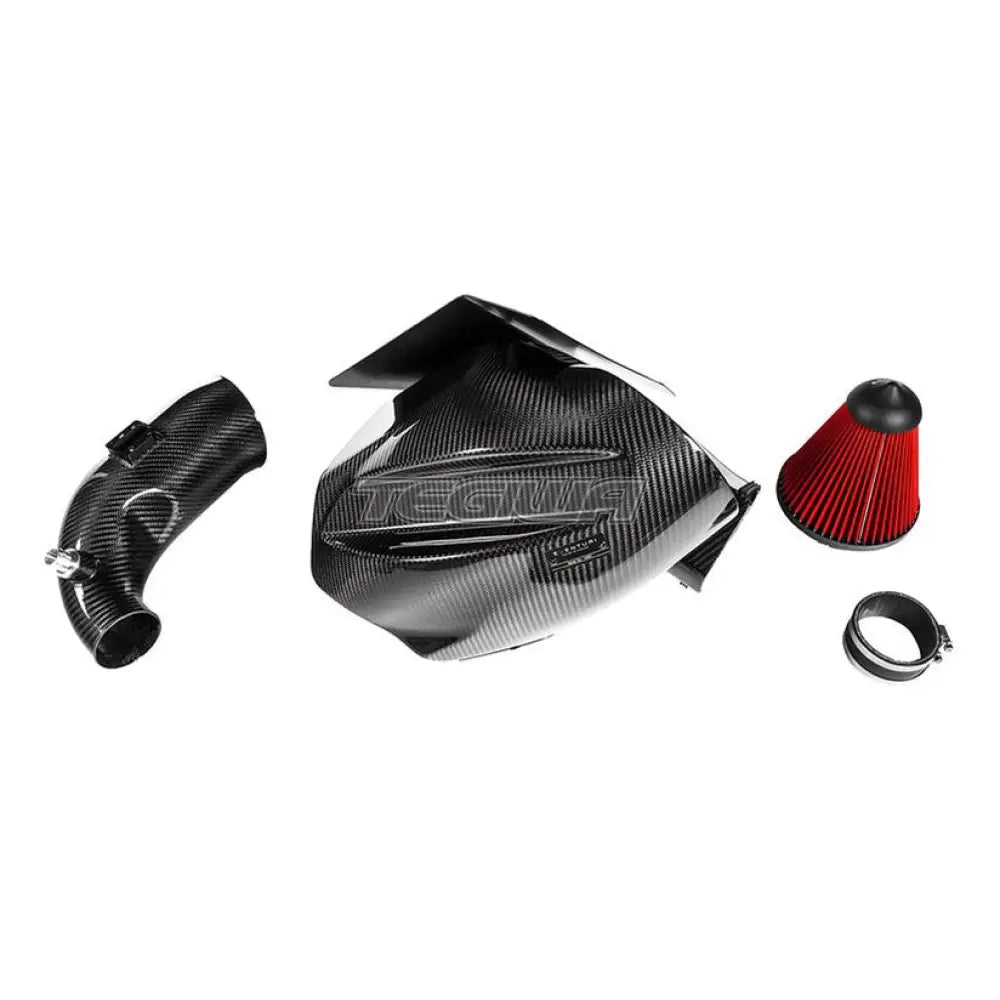

Kit Includes:

• Carbon fibre airbox with dual feeds
• Bespoke high-flow dry cone filter
• Carbon fibre inlet tube with 111mm opening internal diameter
• CNC-machined temperature sensor mount
• CNC-machined breather adapter
• Heat shield with gold reflective backing
• Laser cut stainless steel brackets
• Silicon coupler with OEM specification clamps

Key Features:

• Fully sealed dual-feed carbon fibre airbox prevents heat soak
• Secondary cold air feed draws from wheel arch area opening
• Heat shield with gold reflective lining minimises radiative heat transfer from the exhaust manifold
• Laser cut plate with rubber sealing strip seals the intake tube entry to the airbox
• Carbon inlet tube with 111mm (4.4") internal diameter - 82% larger cross-sectional area than stock
• Stock convoluted inlet tube replaced with smooth carbon tube for laminar airflow
• Removable panel on airbox for use with optional Eventuri headlamp duct
• 100% prepreg carbon fibre with no fibreglass

Compatible With:

• BMW G29 Z4 3.0 (B58)
