Eventuri Carbon Fibre Intake BMW B58 G2X

The Eventuri Carbon Intake for the BMW G20 B58 provides a less restrictive flow path to the turbo while maintaining low inlet temperatures. The intake is positioned next to the exhaust manifold, which rapidly heat soaks the engine bay. E

venturi's solution is a fully sealed dual-feed carbon fibre airbox with a heat shield lined with gold reflective material to minimise radiative heat transfer from the exhaust manifold. A secondary cold air feed draws from an additional opening into the wheel arch area. The stock convoluted inlet tube is replaced with a smooth carbon tube with a starting internal diameter of 109mm (4.3"), tapering smoothly to the stock turbo inlet - an 82% increase in cross-sectional area over the stock tube (OEM: 80.8mm / 3.2"). Available in two versions for pre and post-November 2018 build dates.

Filter Type:

• L

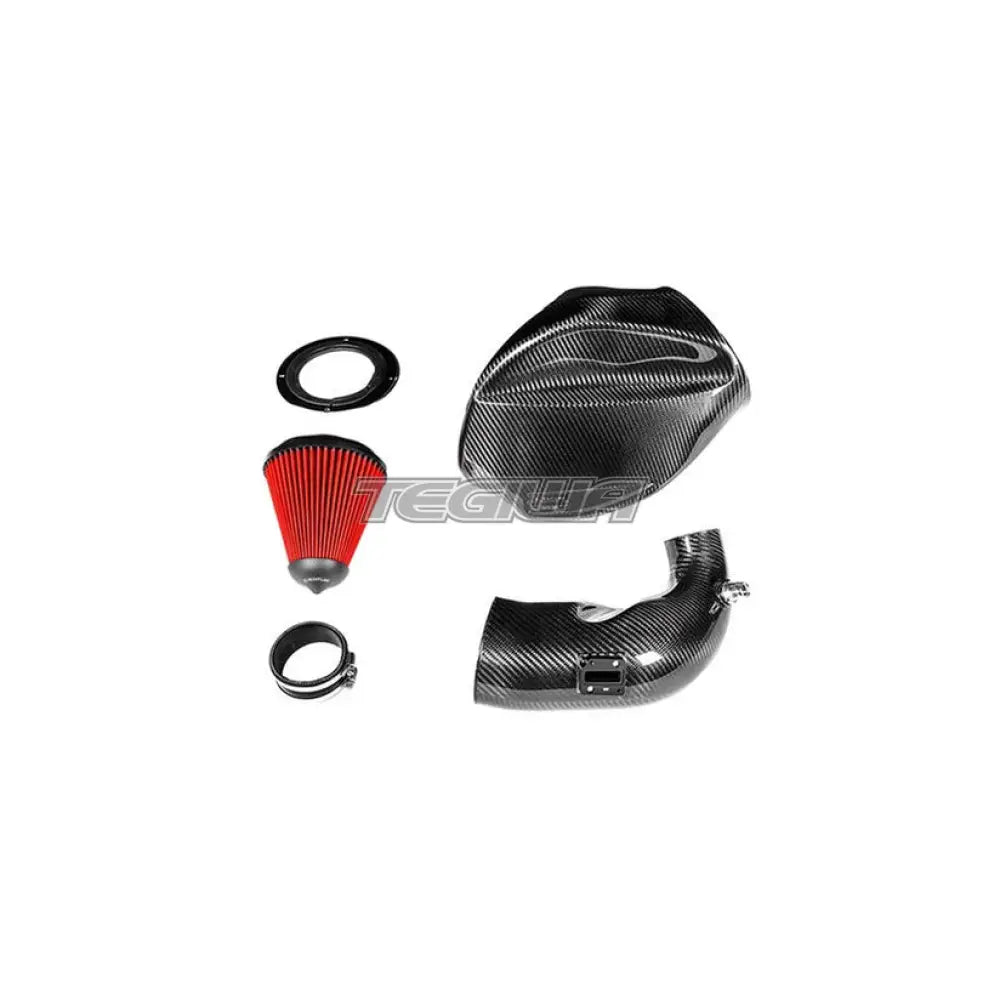

Kit Includes:

• Carbon fibre airbox with dual feeds
• Bespoke high-flow dry cone filter
• Carbon fibre inlet tube
• CNC-machined temperature sensor mount
• CNC-machined breather adapters
• Heat shield with gold reflective backing
• Laser cut stainless steel brackets
• Silicon reducer with OEM specification clamps

Key Features:

• Fully sealed dual-feed carbon fibre airbox prevents heat soak
• Secondary cold air feed extends into the wheel arch for reduced restriction
• Heat shield with gold reflective lining minimises radiative heat transfer from the exhaust manifold
• Airbox maximised in size with recess to accommodate strut braces
• Carbon inlet tube with 109mm (4.3") internal diameter - 82% larger cross-sectional area than stock
• Stock flexible convoluted inlet tube replaced with smooth carbon tube for laminar airflow
• 100% prepreg carbon fibre with no fibreglass

Compatible With:

• BMW G20 340i / G22 440i (B58)
