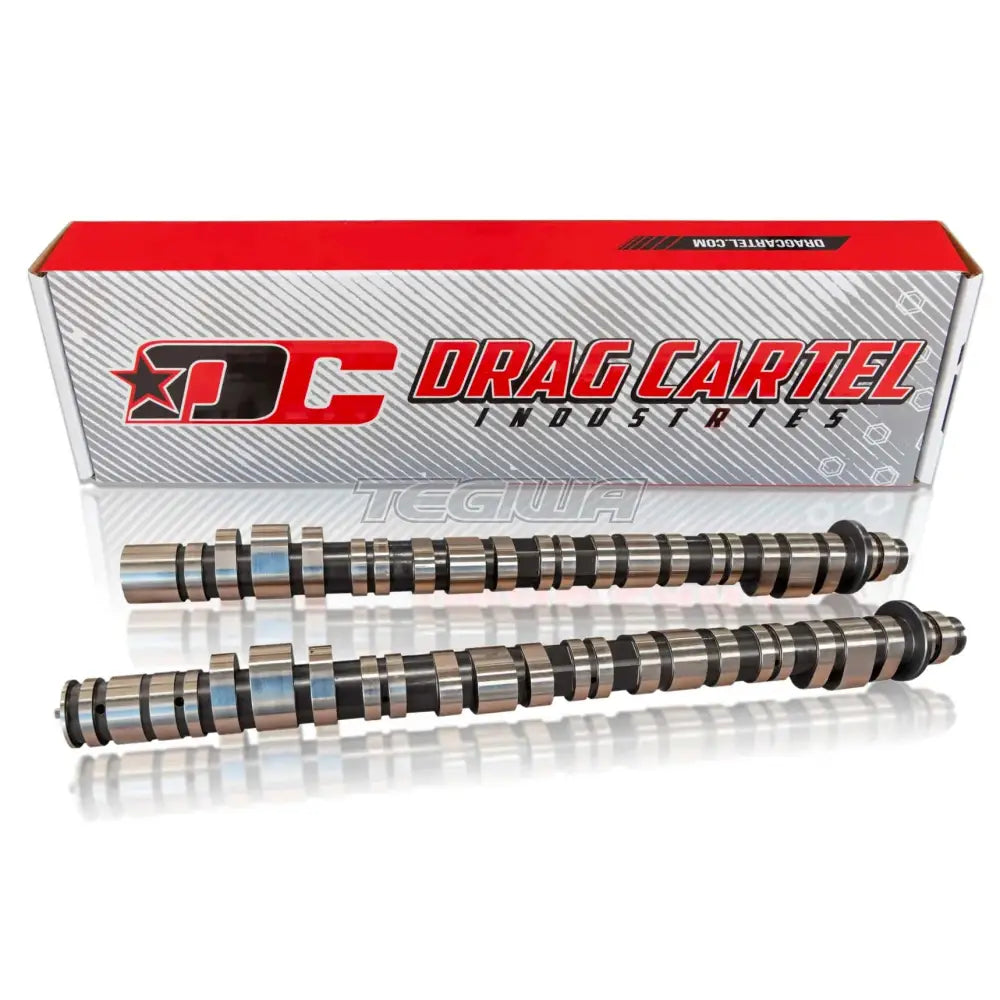

Drag Cartel Camshafts 005 ELITE Pro Series Stage 5 Tool Steel K-Series

Details

005 ELITE PRO SERIES (TRADITIONAL 3 LOBE DESIGN)

ELITE PRO SERIES: Drag Cartel Industries has brought their ELITE Pro Series line to market targeted toward the Motorsports community. Elite Series camshaft made of Tool Steel that delivers the ultimate in high performance & quality. DC Tool Steel camshafts are CNC ground on a state-of-the-art Landis Cam grinder. DC cams deliver the utmost rigidity at an extended rpm range while reducing possible valve float. These are the best cams money can buy and are now available for all stages. Less friction, more rpm potential, and faster action cam profiles allow us to be known in the community as an industry leader.

ELITE PRO SERIES K-SERIES CAMS, RACE PROVEN, TRACK TESTED!

Torque the intake cam gear bolt to 83 lb-ft.
Torque the exhaust cam gear bolt to 51 lb-ft.
Torque the pulse plates to 29 lb-ft.

Specs:

ALL NEW Tool Steel Material
Intake: 15.3 mm Lift / .280 Duration @ .050
Exhaust: 14.7 mm Lift / .277 Duration @ .050
Adjustable Exhaust Cam Gear Recommended

Engine and Application

K-series Engines:
k20a2, k24a2

Cars:
2001-2005 Acura RSX Type-R, 2002-2006 Acura RSX Type-S, 2004-2006 Acura TSX, 2006-2010 Honda Civic Si
