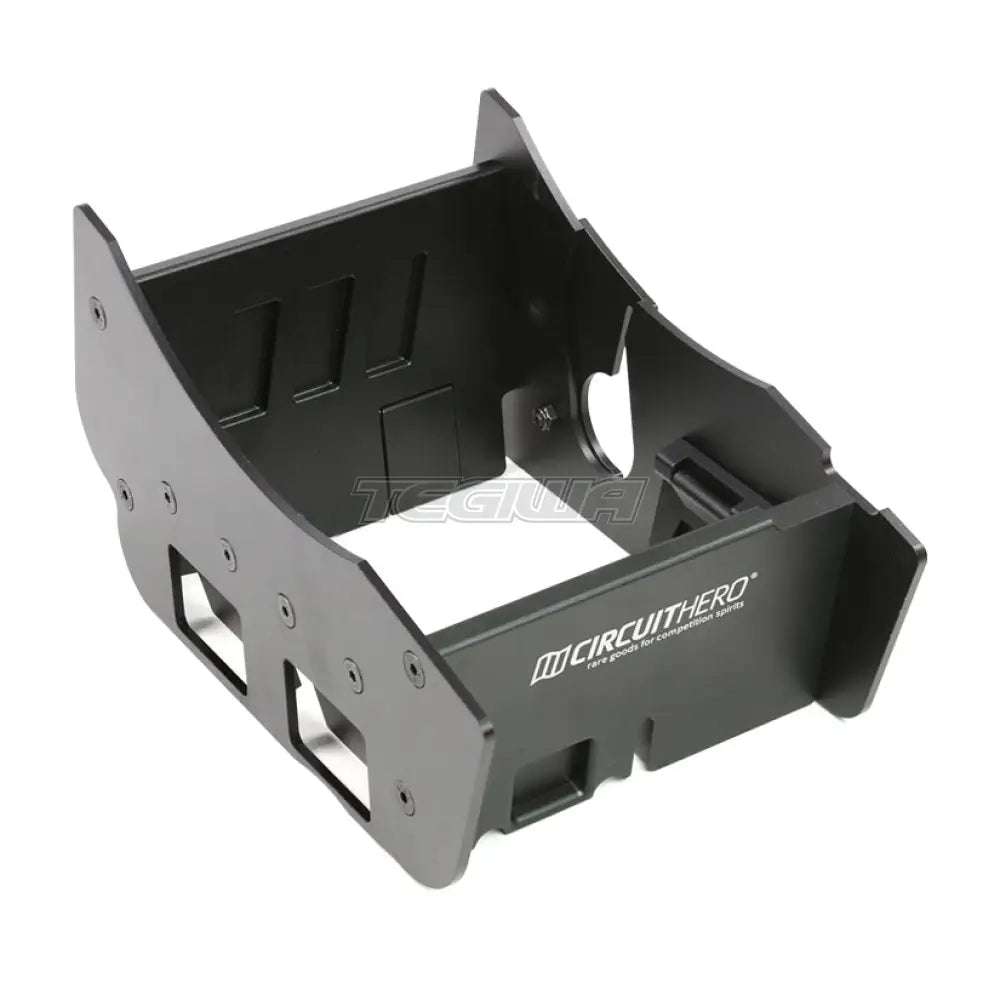

Circuit Hero Billet Drop-in Oil Pan Sump Baffle Honda K-Series K20 K20A K20A2 K20Z1 Civic Type R EP3 Integra DC5

The Circuit Hero Billet K-Series Oil Pan Baffle is a unique product that easily installs on the oil pan floor and keeps oil nearby the oil sump arm preventing oil starvation and protecting engine components. Oil flows freely by utilizing five (5) doors and is designed to keep the engine lubricated during hard acceleration, cornering, and braking.

Features

• CNC Machined 6061 Aluminum
• Two Flush Mount Doors and Three Low Profile Doors
• Black Anodized for Superior Protection
• Simple Drop-in Installation
• Fits K20A/A2/Z1 Engines
• Prevents Oil Starvation
• Thin Profile Mounts and Doors for Additional Clearance

Engine Applications

• USDM 02-04 RSX Type-S (K20A2)
• USDM 05-06 RSX Type-S (K20Z1)
• JDM K20A Engines (EP3 Civic/DC5 Integra Type-R)
• UKDM K20A2 Engines (EP3 Civic Type-R)
• RSX Type-S*

      *Modifications Required:
       Oil Pan: Acura/Honda Part Number: 1200-PRB-000
       Oil Pump: Acura/Honda Part Number: 15100-PRB-A01
       Chain: Acura/Honda Part Number: 13441-PCX-004
       Chain Guide: Acura/Honda Part Number: 13460-PNC-004

Planning on using your car on track? We recommend installing a baffle in your sump. Find out why, here.
