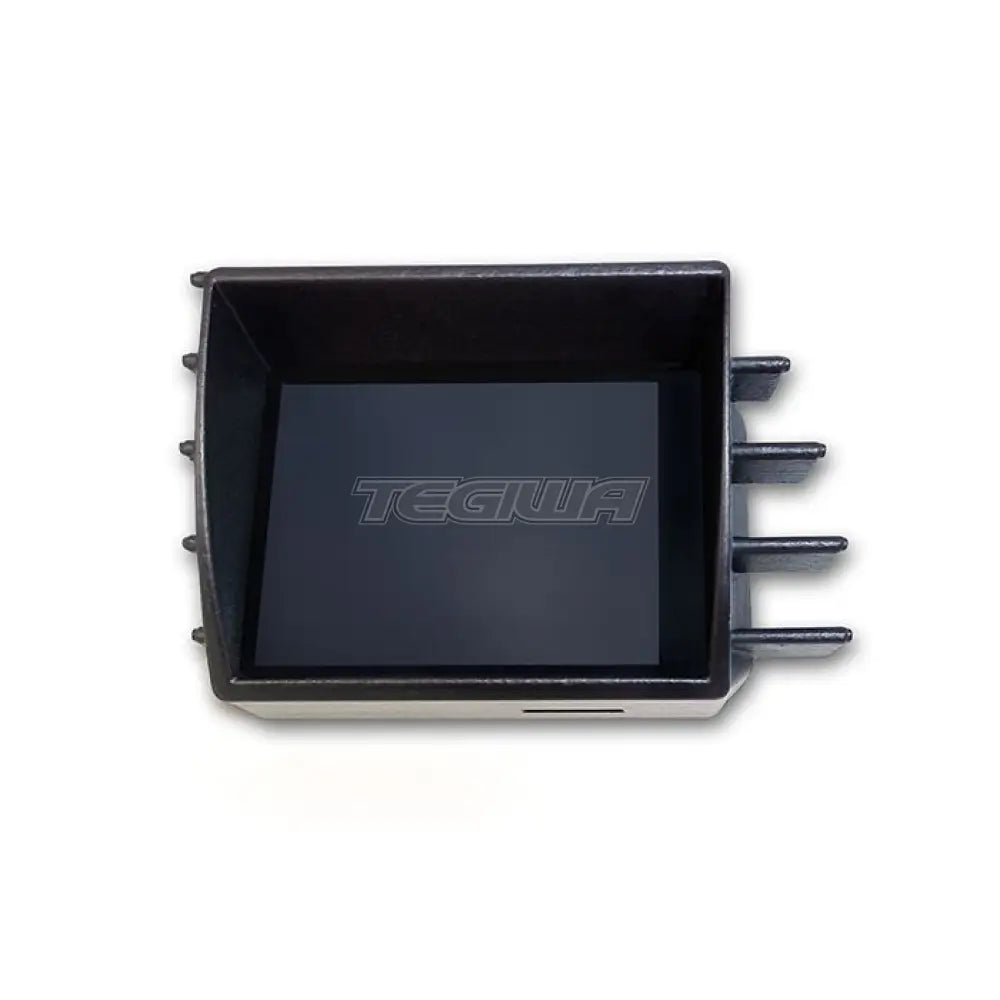

CANchecked MFD28 Gen2 Porsche 911 997 Standalone ECU 04-12

Key Features:

• 2.8" TFT Touchscreen with capacitive touch
• High-quality milled aluminum front frame
• Symmetrical design for optimal 90° rotation
• Fully customizable views with DSS - Display Setup Software
• Up to 64 widgets per page
• Supports up to 128 sensors (CAN Bus and internal)
• Up to 10 configurable pages
• 4 analog inputs for 0-5V sensors (e.g., oil pressure, fuel pressure, exhaust temperature with adapter, and boost pressure)
• Optional external shift light
• CAN Bus Switching functionality
• Supports CAN Bus protocols: UDS, KWP2000, OBD, TP2.0, and standalone ECUs

Supported Values:

The MFD28 is compatible with ISO 11898-2 and SAE J2284 standards, allowing access to a wide range of sensor data. Up to 128 sensors can be queried, depending on your control unit's capabilities. Data available in broadcast, as well as OBD2 queries via CAN Bus (11bit/29bit), are implemented. Special protocols like TP2.0 from VW/Audi and UDS are also supported.

Dimensions and Mounting:

With installation dimensions of 70.3 x 52mm, the MFD28 is compact and easy to install. The four front-side holes and included black Torx screws ensure a secure and sleek mounting.

DSS - Display Setup Software:

Our DSS software allows for convenient PC configuration of the MFD28. Customize CAN Bus protocols, import DBC files, and design displays with various widgets. The built-in CAN Bus Logger enables in-depth protocol analysis, facilitating reverse engineering of unknown CAN Buses.

Connectivity and Extensions:

Expand the MFD28's capabilities with our range of compatible products:

• CANchecked sensors for water/oil temperature
• CANchecked sensors for oil/fuel pressure
• CANchecked CAN Bus Extension: MCE18
• CANchecked CAN Bus Hub: CBD08
