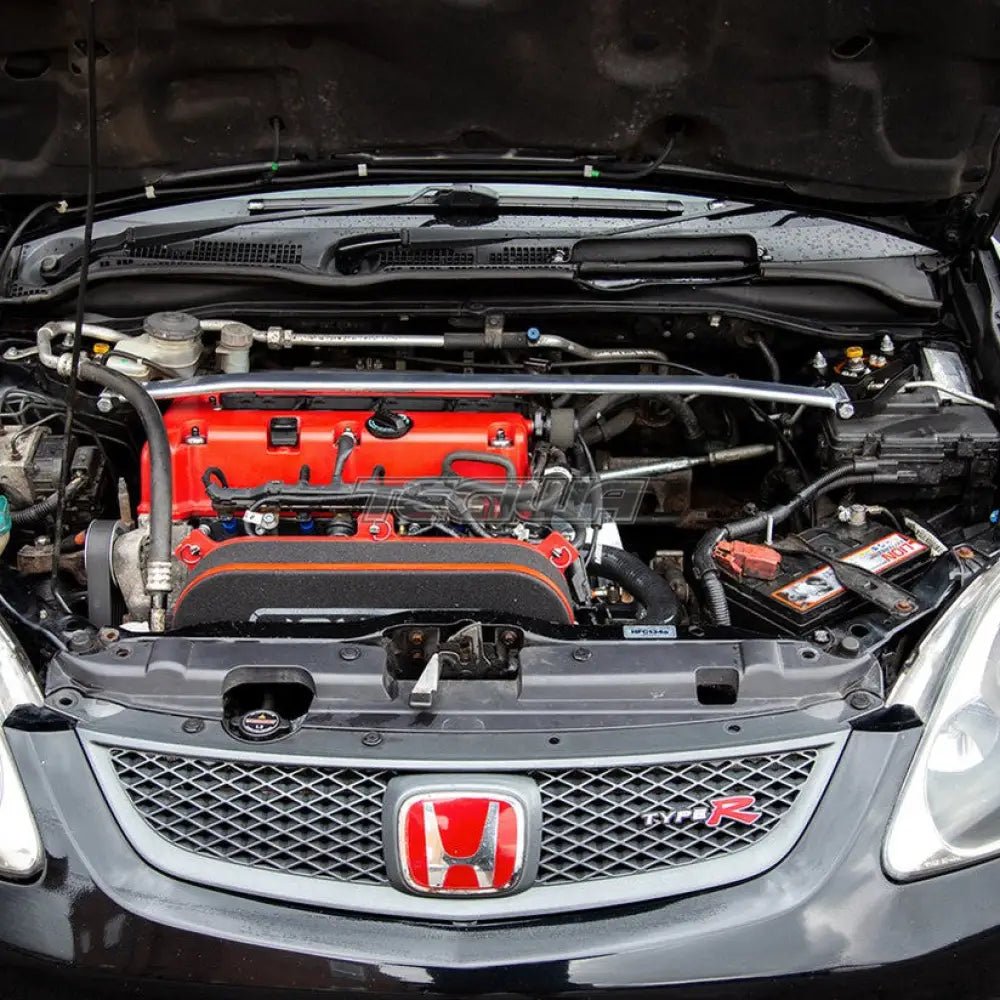

The Jenvey Honda Civic Type R EP3 ITB Kit has been designed and developed with Honda specialists, Tegiwa Imports Ltd to bolt straight into the engine bay of a Civic Type R EP3 without any major modification whilst significantly increase performance and throttle response of your engine leading to a reduction in lap times.

With individual throttle bodies, the Jenvey system optimises airflow to each cylinder, enhancing engine performance and maximising power output. This direct, precise control of air intake allows for improved throttle response, sharper acceleration, and a broader power band across the RPM range. Whether you’re tearing up the track or cruising the streets, the Jenvey ITBs provide the responsiveness you need to conquer any road.

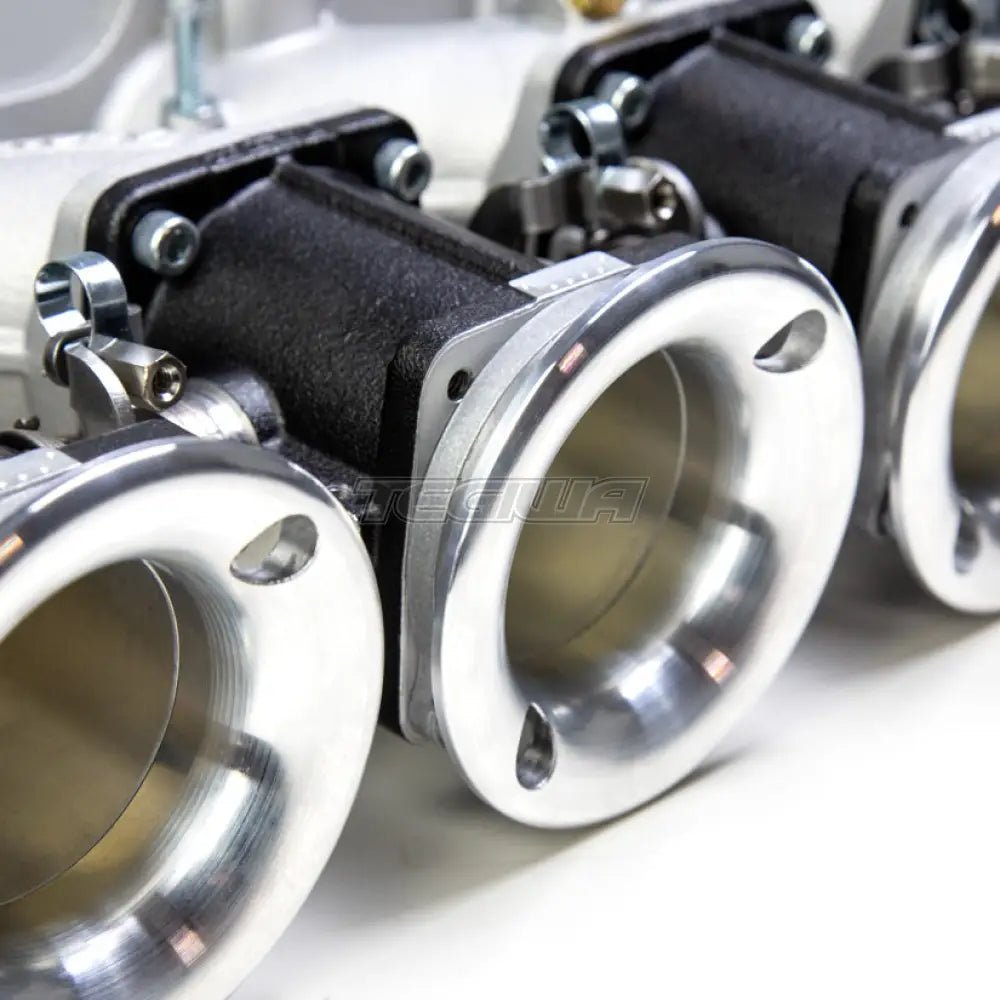

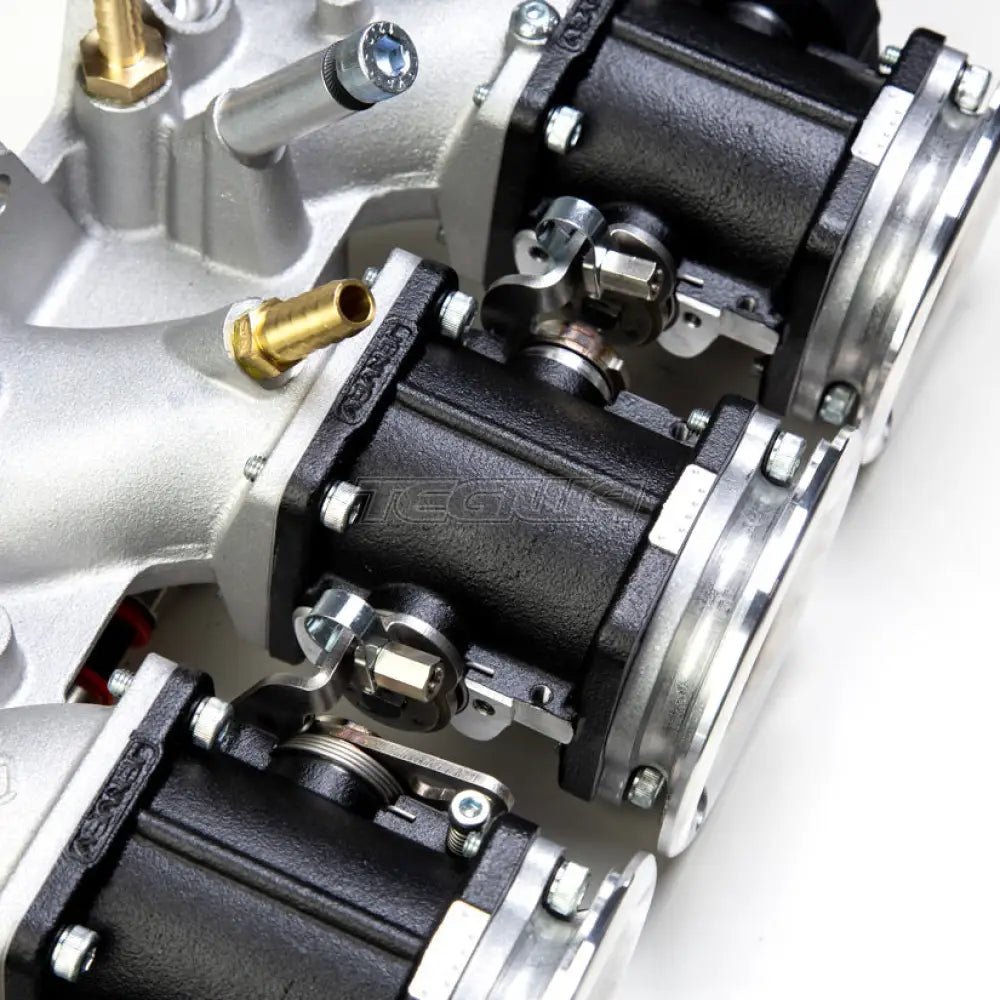

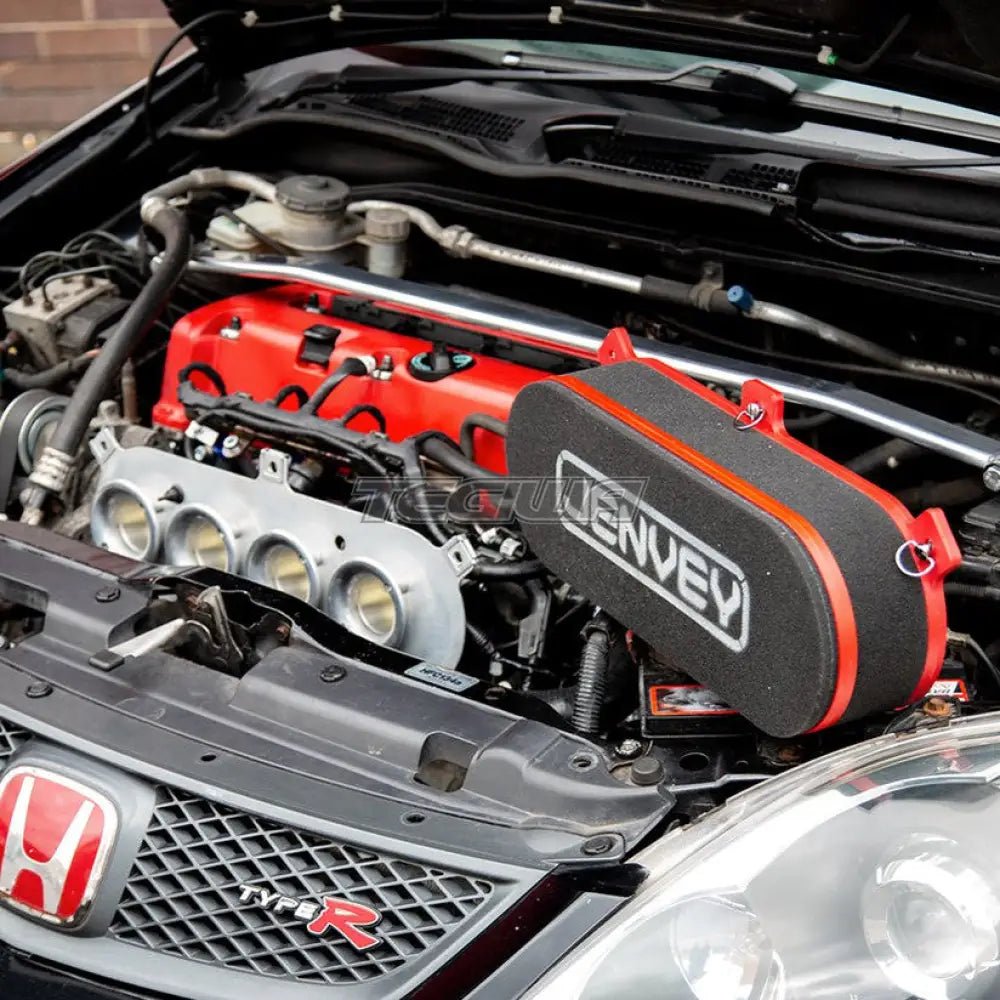

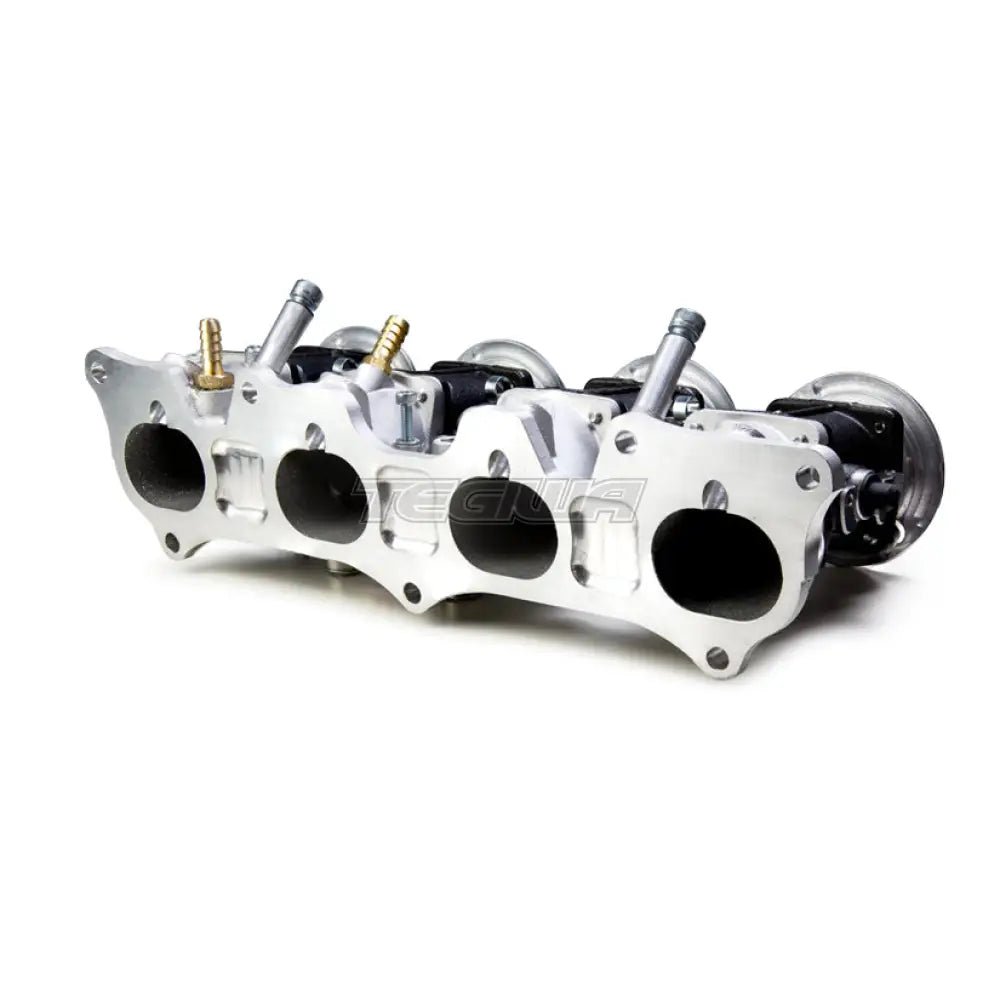

The kit includes 4 X 48mm parallel individual SF throttle bodies, curved manifold to avoid changes to the pulley, Jenvey cable linkage kit, short 20mm billet air horns, standard TPS adaptor along with an ITG air filter and backplate.

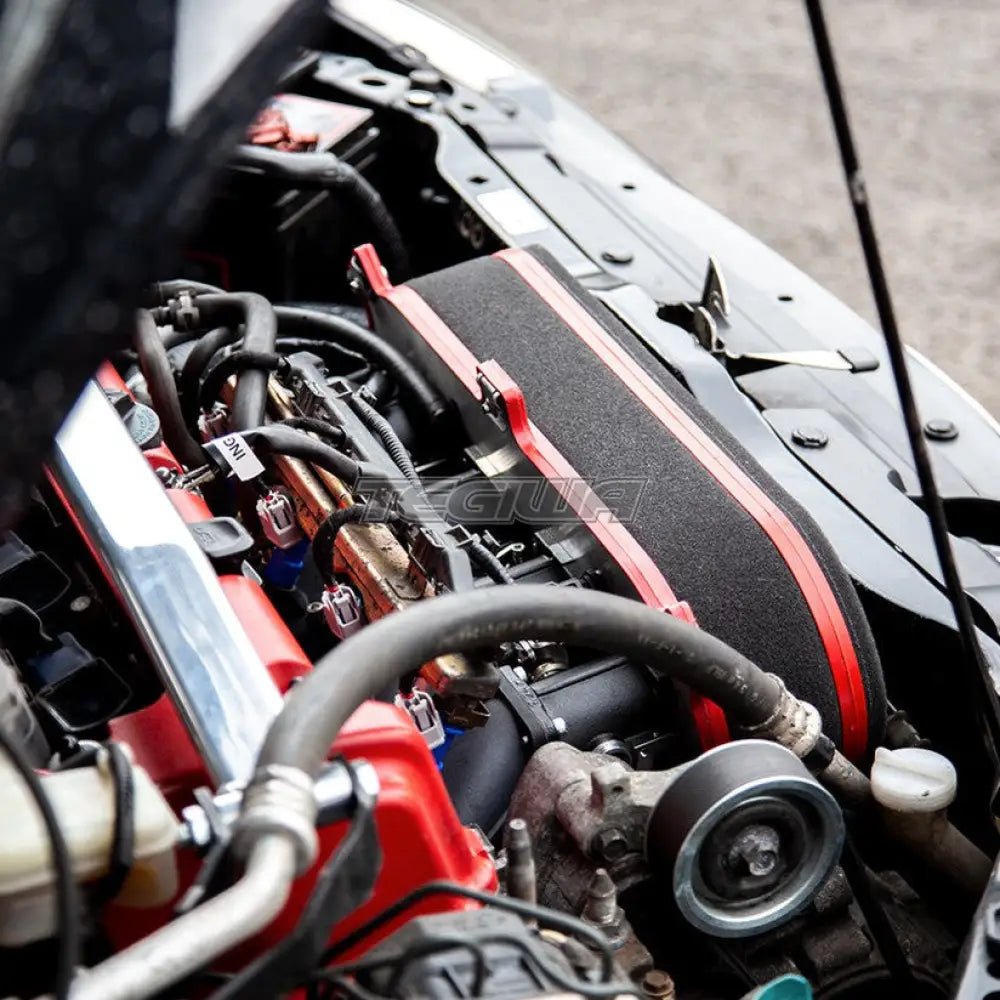

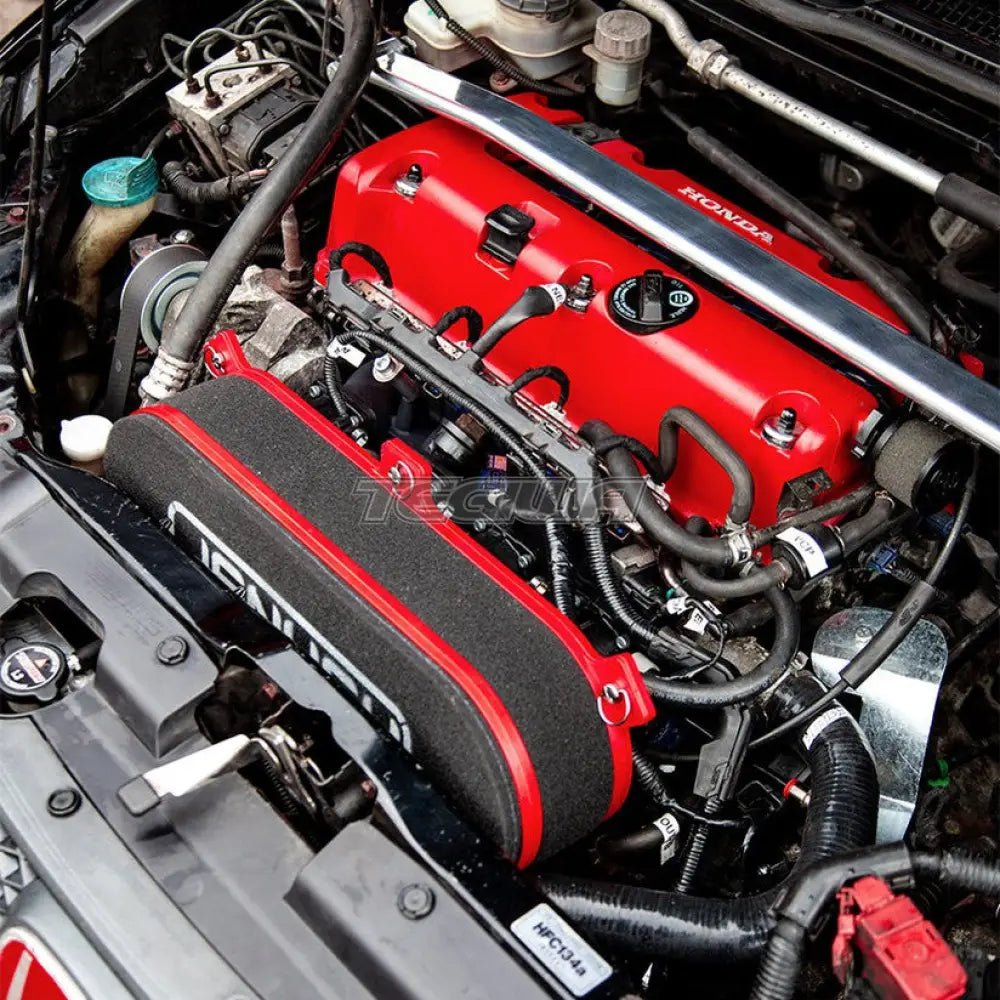

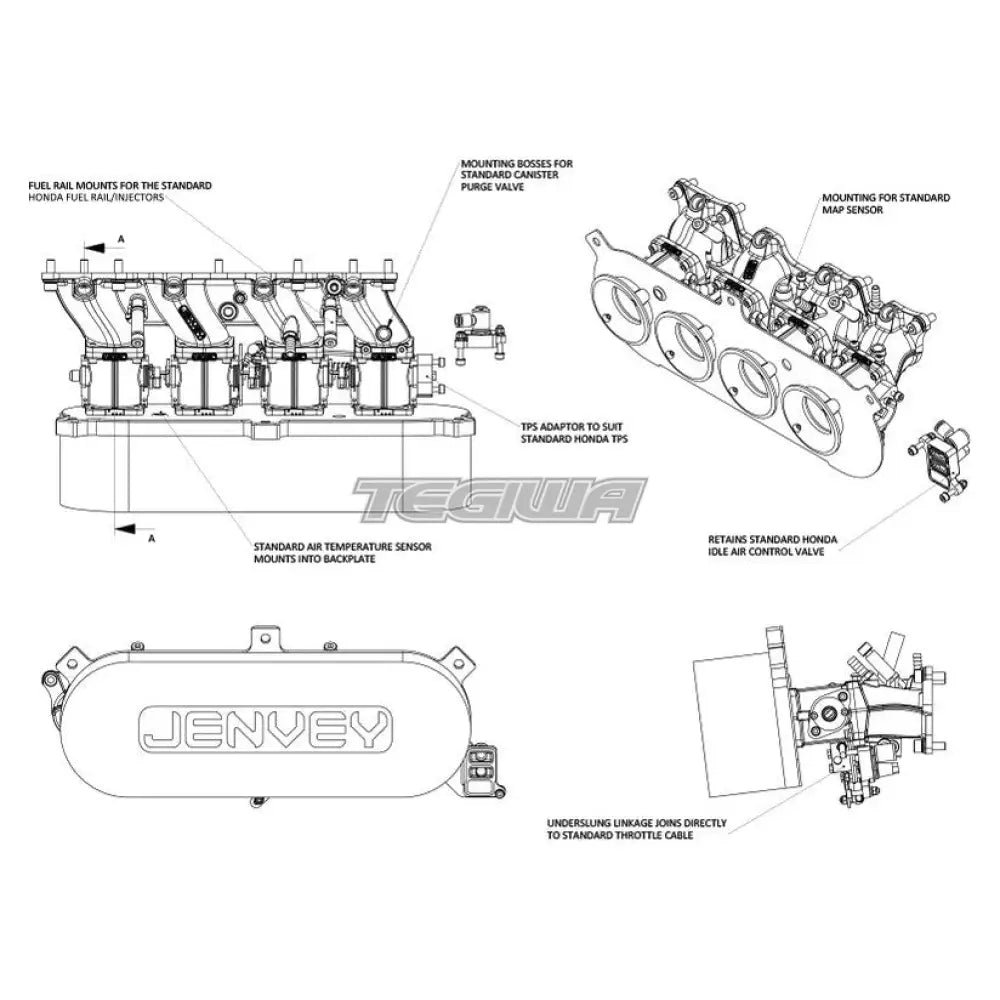

Requires a genuine Honda TPS with the polarity reversed, will not work with a hall effect TPS. The manifold itself is curved in order to clear the auxiliary pulley. The kit is finished off with an ITG foam filter that fits snuggly in the engine bay, maximising all possible space. The kit retains the use of the standard fuel rail, throttle position sensor, canister purge valve and includes fittings for the PCV, brake boost and oil breathers. The OEM Map sensor and Idle Control Valve need to be blanked off and mapped out.

Using these throttle bodies don’t require any supporting modifications other than a standalone ECU and a Bosch Haltech 4.9 wideband. On our test car we used a Haltech Elite 1500. Whilst not strictly required, we do recommend upgrading your fuel injectors too, as the standard EP3 310cc injectors will be running close to their full duty cycle. We recommend going for Genuine Honda RDX 410cc injectors with Toyota clips.

We saw a peak figure of 251.1bhp on our dyno, an additional 13.8bhp over a tune with just a Tegiwa Carbon Airbox, Tegiwa Exhaust Manifold and Tegiwa 70mm Catback Exhaust. This kit will also fit the Integra Type R DC5 too with a few small minor adjustments which are listed in our blog post. You can read the full blog, here.

The kit includes:

• 4x 48mm individual throttle bodies
• Throttle Linkage
• Manifold
• Air horns
• ITG Air Filter

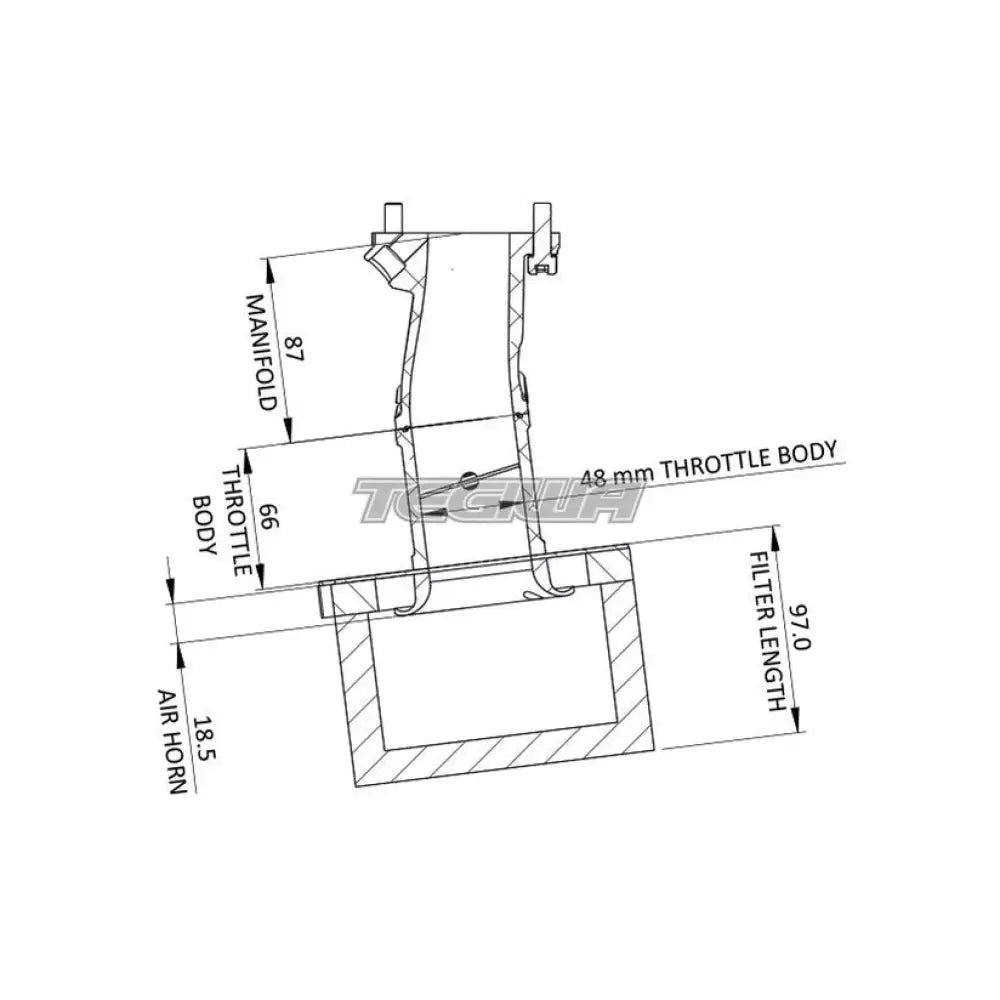

Technical Information

ID Bodies: 48mm

ID Air Horns: 48mmx19mm

95mm Air Filter

Please note: These throttle bodies will arrive fully assembled, however they will require disassembling to fit to the vehicle. Full assembly instructions are included.
