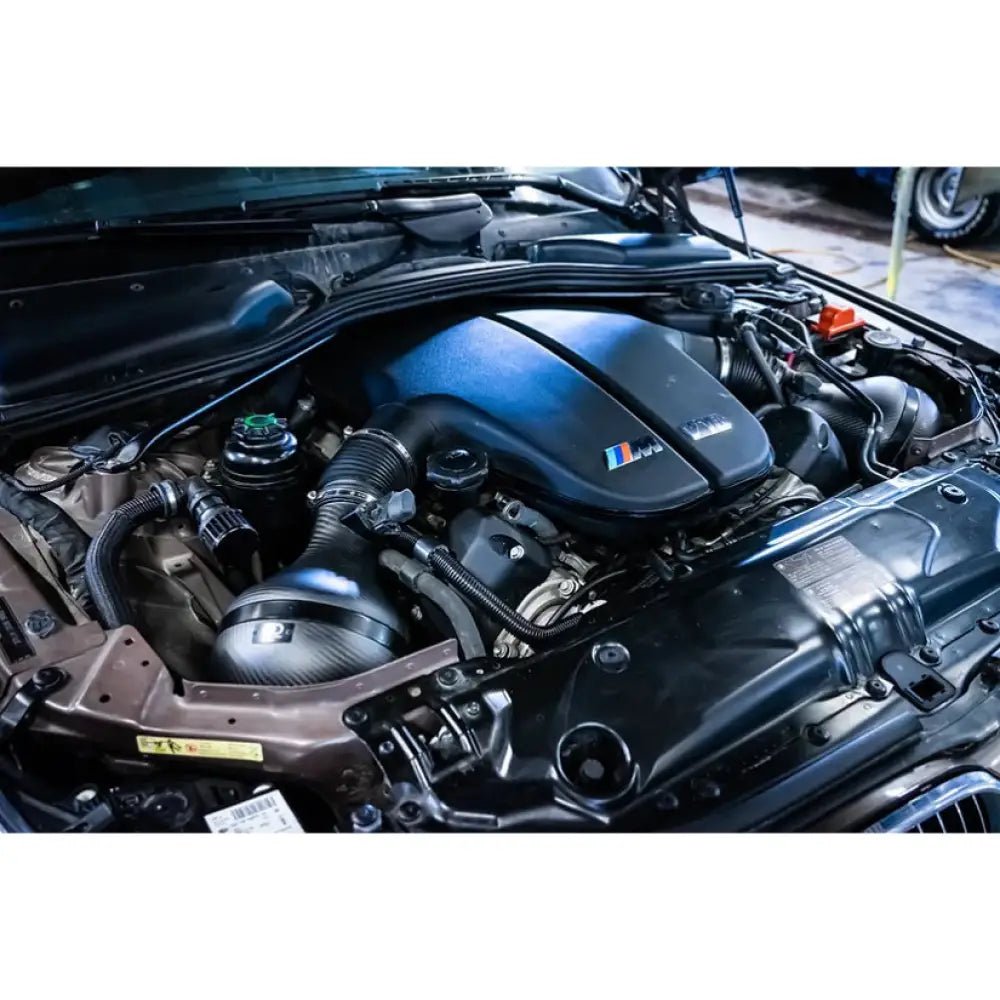

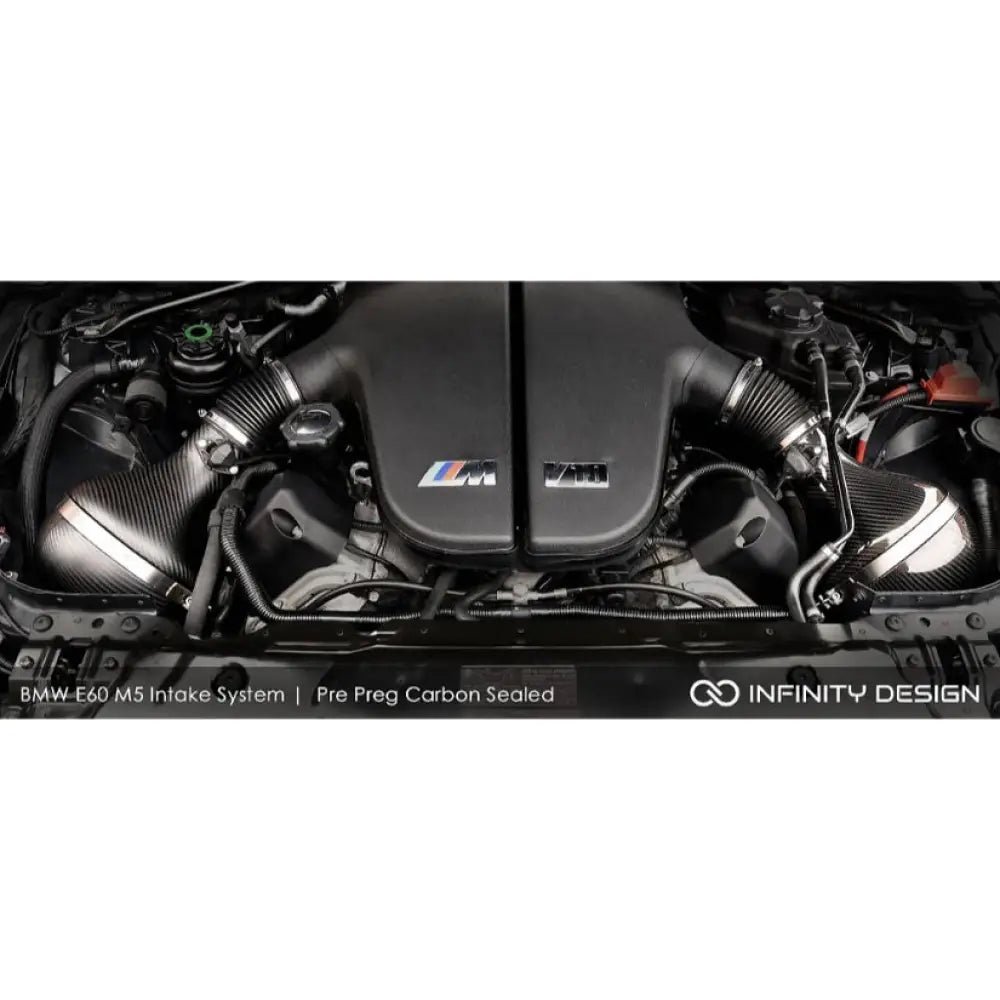

Infinity Design Carbon Fibre Intake System BMW E60 M5 S85 V10

£1,439.04

SKU INF-S85-I-G Category: Brand:
- +

Order Within

Orders Before 2PM Ship the Same Day

Ships

Applies to all in-stock items only.

why buy from us

An intake system which performs both on the dyno and the real world with a realistic gain of 12-15hp at high engine speeds where the OEM intake becomes restrictive (see dyno graph).
A complete product which performs consistently due to it’s sealed high flow design keeping intake air temperatures at ambient.
Fits directly to OEM lower and frontal intake.

How the Increased Power and Throttle Response is achieved
The bespoke large surface area, high flow air filter alters the direction of the airflow towards the outer walls of the velocity stack shaped intake tube.
This therefore creates a smoother and less restrictive air flow allowing which in turn reduces the load on the engine and allows for more ambient air to enter the engine.

The overall effect is a vastly improved driving experience with faster throttle response, a sophisticated V10 race car like induction sound and more power.
The faster throttle response will naturally give the impression of more quickly available torque at lower engine speeds also.

Why a Sealed Intake is Important on the S85 V10 Engine
The majority of intake systems on the market are open designs which allow high temperature engine bay air to enter the intake system.
This has has a two tier negative effect:
The most understood effect is that the hotter engine bay air is less dense in oxygen which naturally produces less power.
The second effect is less well understood. The ECU detects the higher temperature air through the intake air temperarture sensor located inside the MAF sensor. The compenstion tables will reduce ignition timing which has a drastic effect on power output. In the case of the MSS85 ECU running the S85 V10 engine, not only is ignition timing retarded but fuelling is also increased which further reduces power.
The Infinity Design lower air filter / Inlet Air Ducts housings have been meticulously designed to allow for maximum air flow and fit directly to the large factory air inlet ducts creating a perfect seal which keeps the intake air temperatures at their lowest point at all times and thus giving the best possible performance.

Specifications

  • Pre-preg & autoclave carbon fiber construction
  • Sealed design for optimal air temperature efficiency
  • Available in Gloss or Matt clear coated finish
  • Improved throttle response and induction noise
  • Plug & Play fitment

Components

  • Right & Left Carbon Intake Tubes with integrated MAF Boss

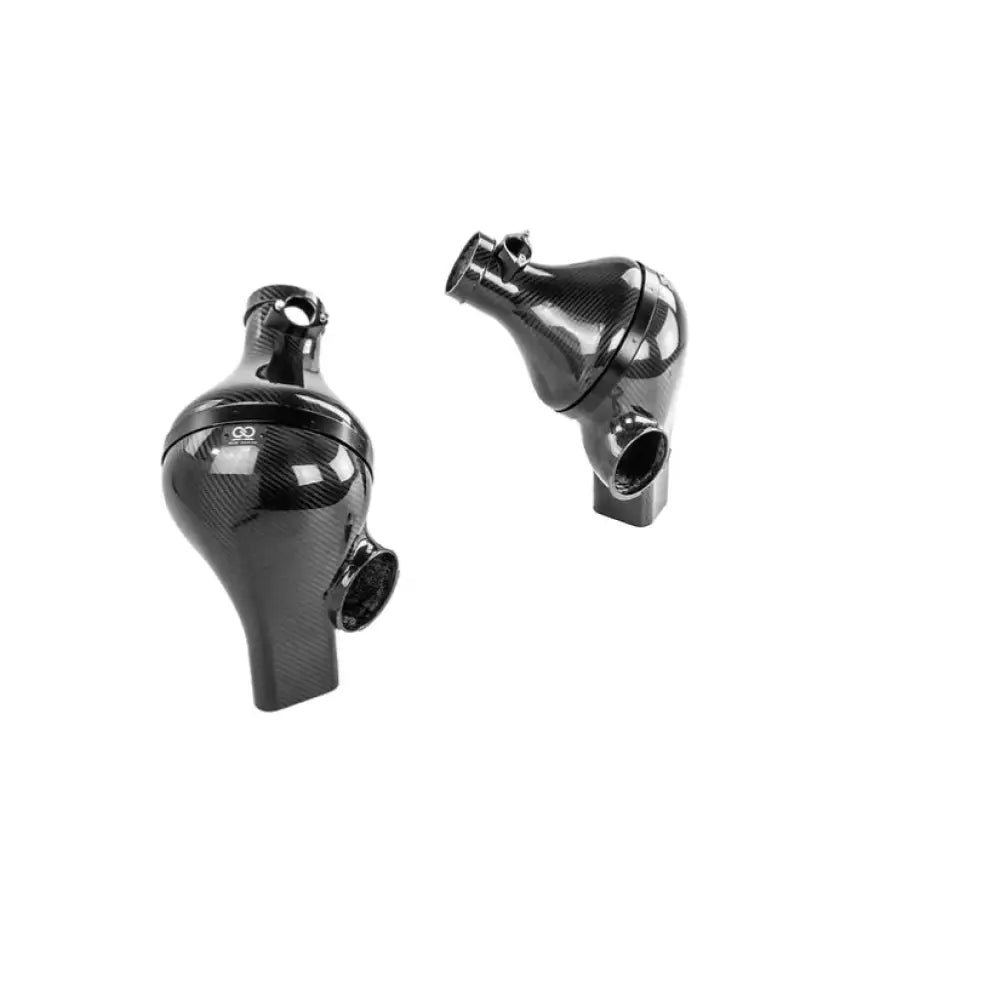

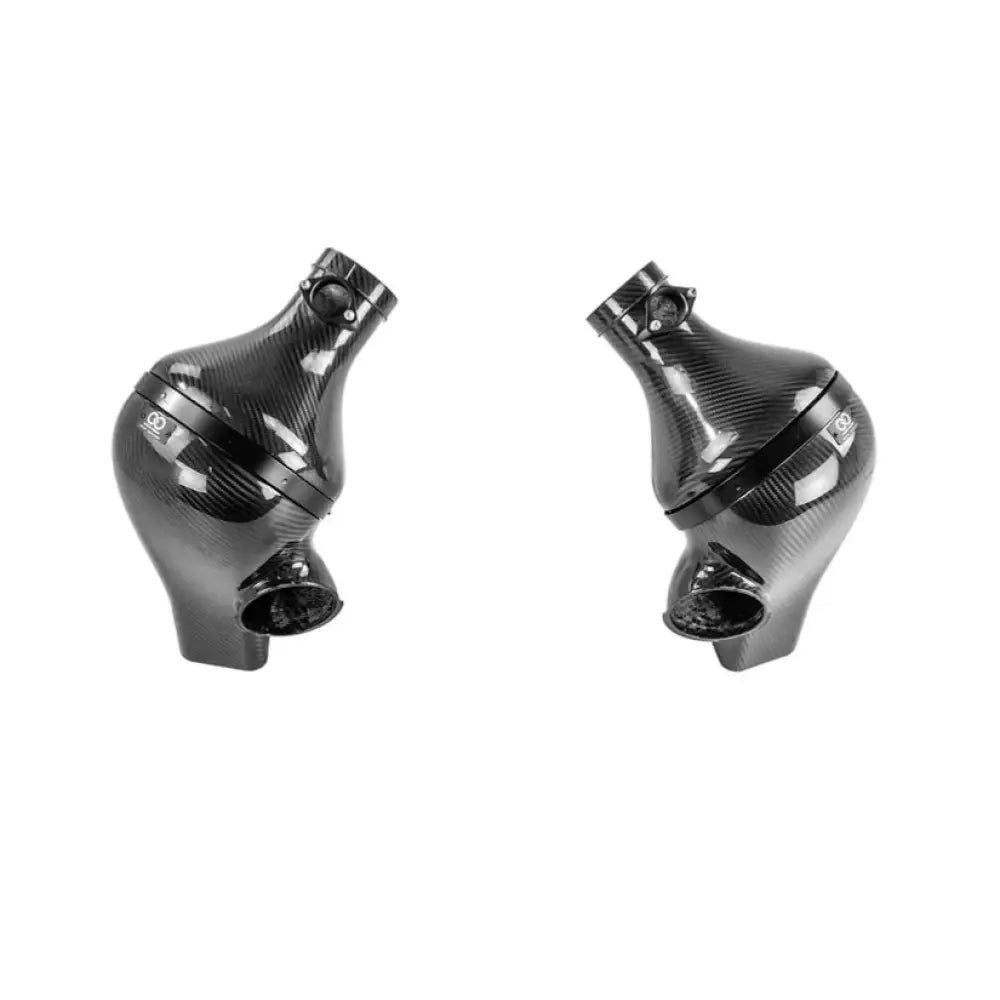

  • Right & Left Carbon Air Filter Housings with inlet ducts
  • 2x Bespoke Infinity Design Air Filters
  • 2x black metal clamps
  • 1x filter for intake breather valve with 2x clamps and bolt.
  • 1x bracket for wiper fluid fill with bolt & nut
  • 2x bolts for MAF housings

Installation

No tuning required.
Compatible with OE Mass Air Flow sensors (MAF).
Plan 60 minutes for installation.
