Airtec Motorsport Aluminium Under Tray Toyota GR Yaris Gen 1 & 2 20+
£489.50
Order Within
Orders Before 2PM Ship the Same Day
Ships
Applies to all in-stock items only.
why buy from us
- 14 Day Return Period
- Authorised Dealer
- Free UK Delivery over £100
- Expert Advice 24/7
Description

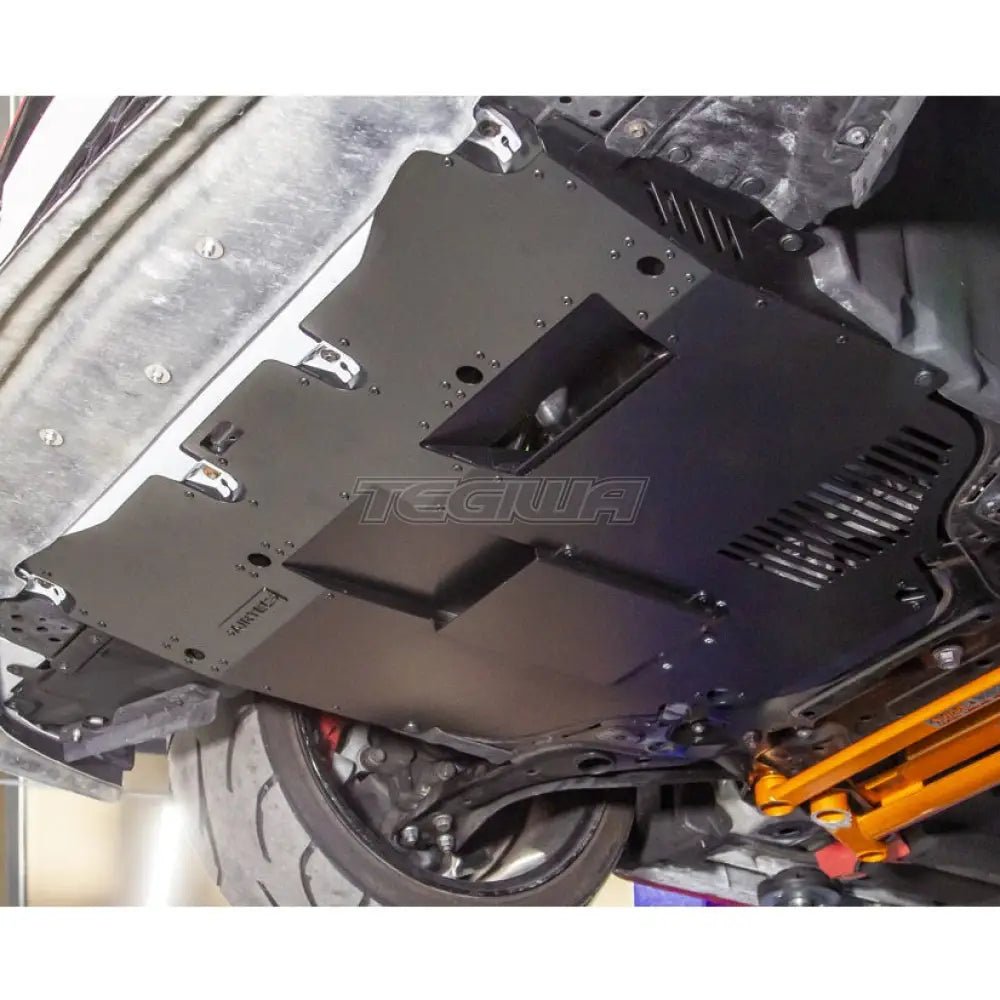

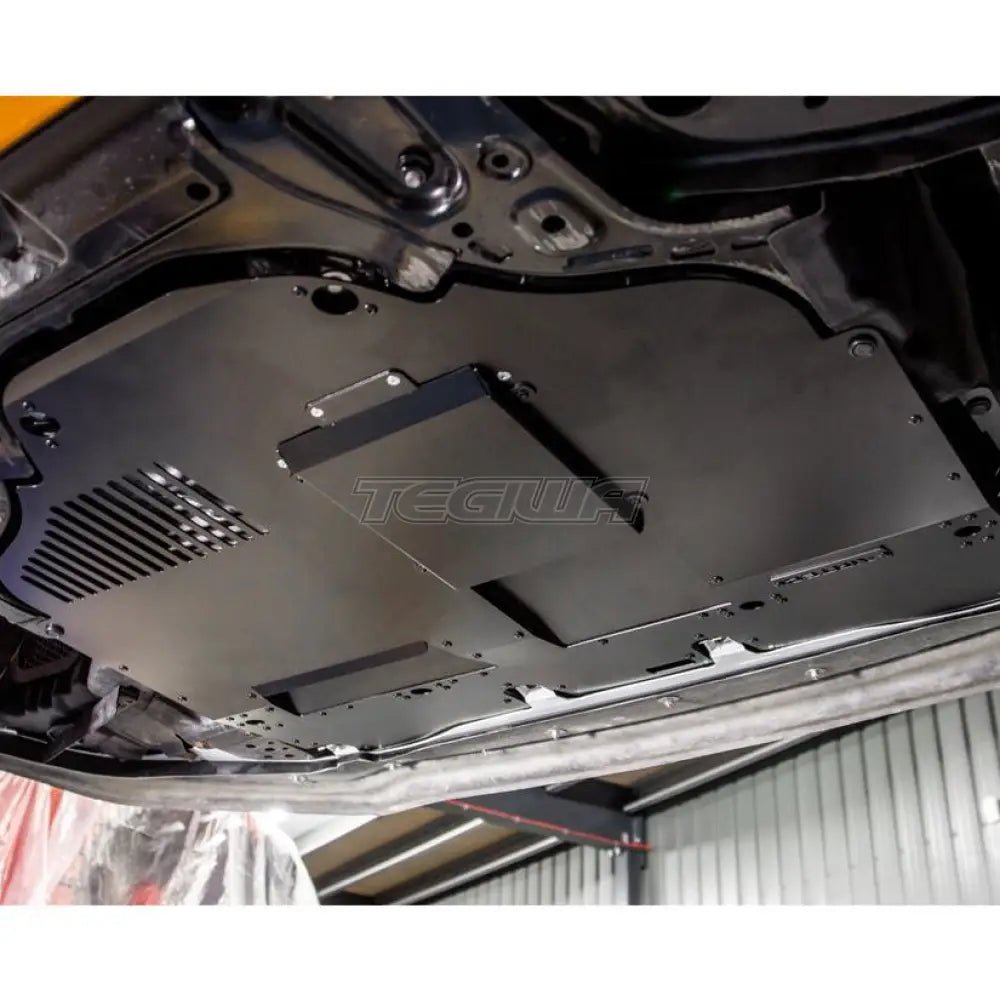

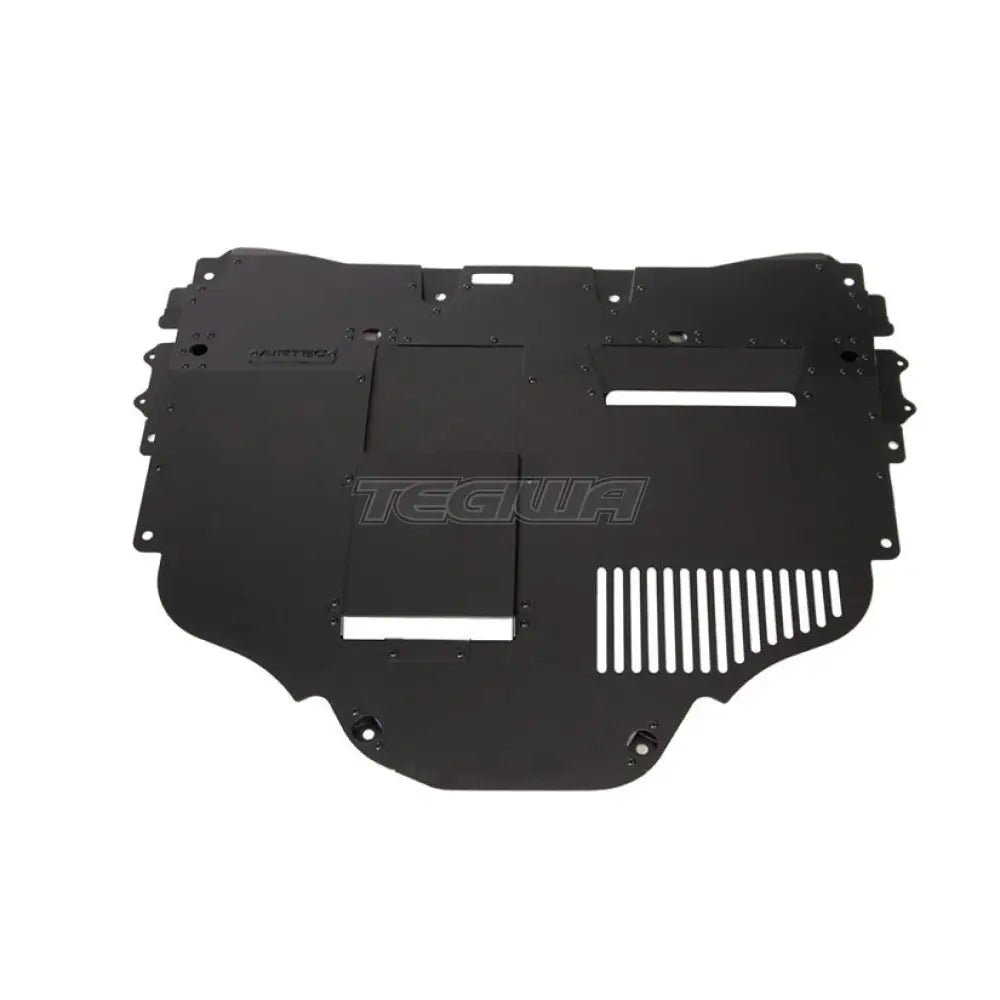

As part of our expanding Toyota product range, AIRTEC Motorsport is proud to launch our direct replacement aluminium under tray for the Yaris GR Gen 1 and Gen 2 models including automatics.
The Issue
The original under tray on Gen 1 cars features no venting at all and is made from a weak fibre material construction which will be prone to failure over time. Gen 2 cars feature a plastic under tray but with a small single vent for the transfer case alone.
Construction
Our solution to creating a direct replacement under tray began with a full 3D scan of the vehicle’s underside to ensure a perfect fitment that reuses all original mounting points and fixings. Made in 2mm aluminium and finished in a high-quality black powder coat, our under tray offers an enhanced level of protection to the underside of the car but more importantly, the design has also been carefully considered to ensure improved cooling and air flow to the vital transmission components.
Cooling
Whilst the Gen 1 under trays feature no cooling at all, the Gen 2 under trays feature a basic duct for the transfer case at the rear, as clearly Toyota see this as an area that requires cooling. The AIRTEC Motorsport under tray therefore utilises a much larger scoop for the rear to force more air flow and offer better cooling. It also features a built in gearbox cooling duct, together with a venting section behind it to create air flow to and from the transmission and reduce temperatures. The comprehensive design also features rear ventilation to allow heat to exit the undertray together with side vents to further improve air flow.
Conclusion
A simple yet effective upgrade that offers improved strength, durability and cooling effectiveness.
Please note: The under tray uses existing mounting points – but it is essential the fixings you use to secure it are of good quality. The original Toyota fittings should only be reused if they’re in good condition. Worn, corroded or broken fixings should be replaced with new items from Toyota, as failure to do so may cause the under tray to work loose.
Features:
- Direct replacement under tray for Yaris GR Gen 1 and Gen 2 (incl. Automatic)
- Improved cooling to vital transmission components
- Uses all original mounting points – no cutting or drilling required
- Created from 3D scan and CAD software for perfect fitment
- Made from 2mm aluminium for increased strength
- Comes in a durable black powder coat finish
- Uses existing fixtures and fittings
